Water Pump: Service and Repair

Coolant pump

Operation number: 26202-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Drain the cooling system. Service and Repair

Remove battery. Removal and Replacement












Torque: M6, 10 Nm




Torque: M6, 10 Nm

Torque: M8, 24 Nm




Slacken the tensioner using a 19 mm fixed wrench.
Lock the tensioner in the slackened position using a 3 mm pin.




Torque: M8, 24 Nm




Torque: M8, 24 Nm

Torque: Pressure line to power steering pump, 30 Nm




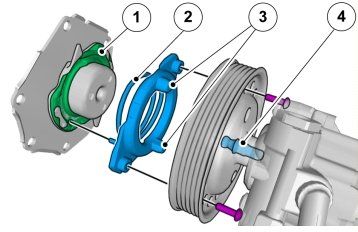

Make sure that the coupling's spring (2) clicks into place on the bonded part of the water pump (1).
Always use a new guide pin (3) when installing.








Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure

Refill the cooling system using filling equipment:
951 2957 Coolant Reservoir 951 2957 Coolant Reservoir
with cover 951 2955 Cover 951 2955 Cover
