Timing Chain, Dismantling

Timing chain, dismantling

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

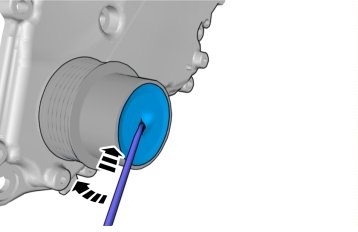

Rotate the engine to the zero position.
999 7257 Wrench 999 7257 Wrench




999 7261 Position sensor 999 7261 Position Sensor









Install the following items:
- 999 5760 Counterhold 999 5760 Counterhold
- 951 2926 Bit torx 50 951 2926 Bit Torx(R) 50

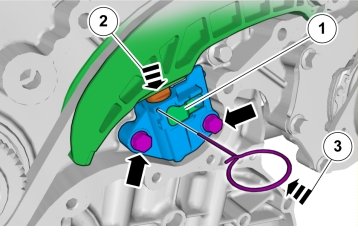

Remove the following items:
1. slightly lift the tensioner's lock tab
2. press together the tensioner
3. lock with a steel wire, drill or similar of - 2 mm in the tensioner's hole





Install the following items:
- 999 7264 Counterhold 999 7264 Counterhold
- 999 7263 Counterhold 999 7263 Counterhold
- 999 7272 TORX 60 999 7272 Torx(R) 60
