Timing Chain, Assembling

Timing chain, assembling

Note! Some variation in the illustrations may occur, but the essential information is always correct.










Installation

Note! Removal steps in this procedure may contain installation details.




999 7261 Position sensor 999 7261 Position Sensor








Torque: M6, 10 Nm





Install the following items:
- 999 7264 Counterhold 999 7264 Counterhold
- 999 7263 Counterhold 999 7263 Counterhold
- 999 7272 TORX 60 999 7272 Torx(R) 60
- Torque: Center bolt, exhaust camshaft Stage 1: 75 Nm Stage 2: 90 degree

- Torque: Center bolt, intake camshaft, 110 Nm




999 7261 Position sensor 999 7261 Position Sensor





Remove the following items:
- 999 7264 Counterhold 999 7264 Counterhold
- 999 7263 Counterhold 999 7263 Counterhold
- 999 7272 TORX 60 999 7272 Torx(R) 60




999 7257 Wrench 999 7257 Wrench




Change the gasket.




Change seal for the intermediate shaft.





Install the following items:

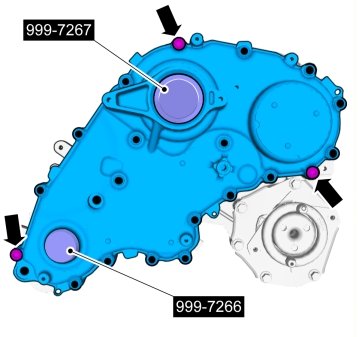

- 999 7266 Position sensor 999 7266 Position Sensor
- 999 7267 Position sensor 999 7267 Position Sensor
Use the tool and 3 screws in the indicated spot to guide the cover and gasket into the right position.





Note! Install all bolts finger-tight before they are tightened.




Torque: M7, 17 Nm




Tighten the screws in sequence from no. 1 to no. 17.
Torque: M7, 17 Nm




Torque: M8, 24 Nm





Install the following items:
1. Torque: M6, 10 Nm

2. Torque: M7, 17 Nm

3. Torque: M8, 24 Nm

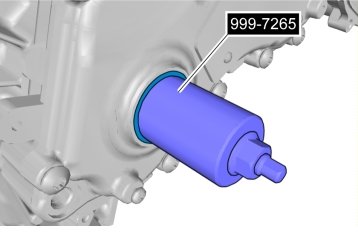

999 7265 Drift 999 7265 Drift




999 7265 Drift 999 7265 Drift




999 7265 Drift 999 7265 Drift




999 7265 Drift 999 7265 Drift




999 5760 Counterhold 999 5760 Counterhold and 951 2926 Bit torx 50 951 2926 Bit Torx(R) 50
Torque: Belt pulley auxiliary unit, 60 Nm
