Gasket, Outer Timing Cover

Gasket, outer timing cover

Operation number: 21502-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Remove the auxiliaries brackets. Service and Repair

Drain the cooling system. Service and Repair

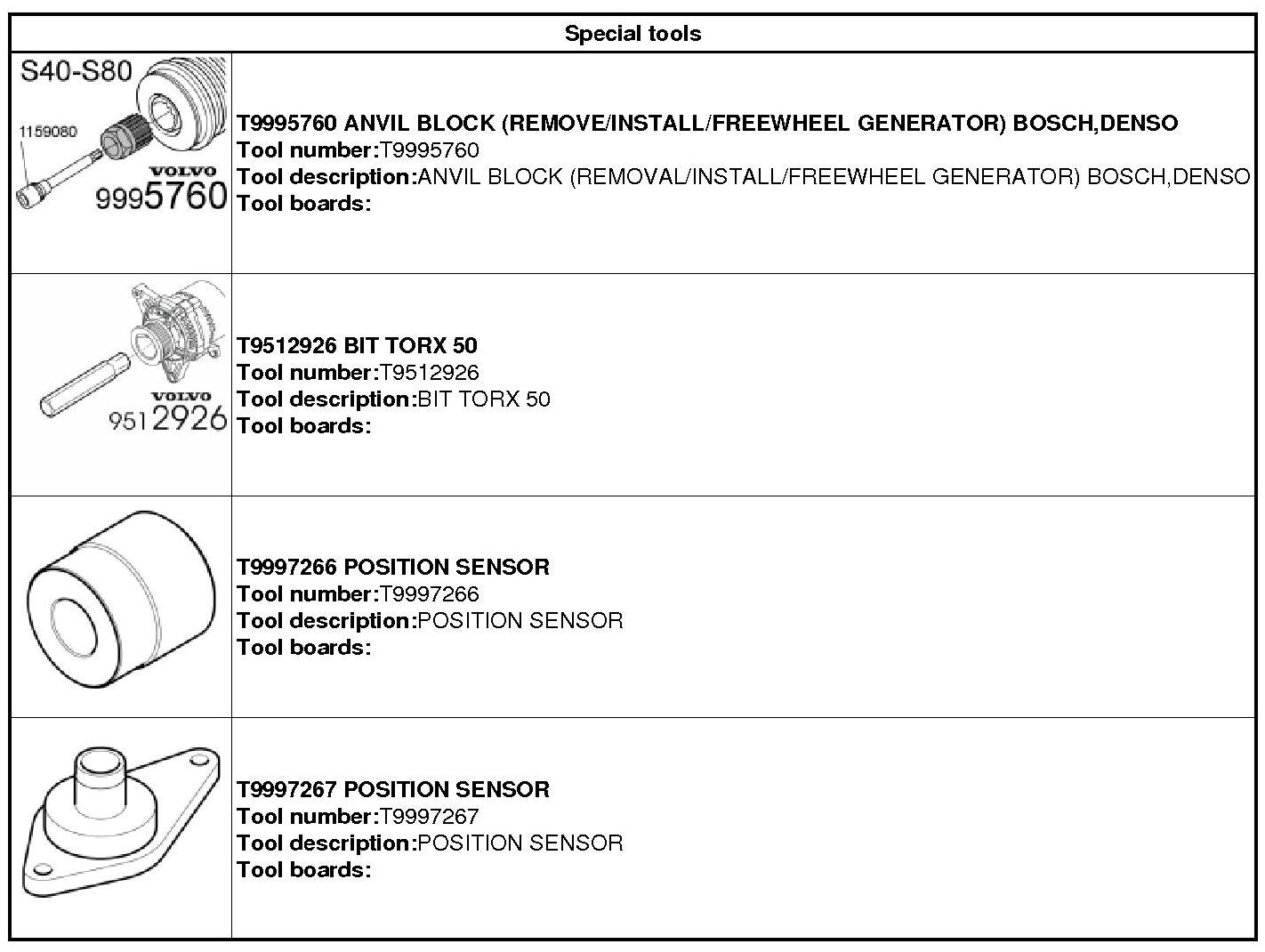

999 5760 Counterhold 999 5760 Counterhold
951 2926 Bit torx 50 951 2926 Bit Torx(R) 50












Remove and replace the gasket.




Remove and discard the intermediate shaft seal.

Installation




Use the tool and 3 screws in the indicated spot to guide the cover and gasket into the right position.
999 7266 Position sensor 999 7266 Position Sensor
999 7267 Position sensor 999 7267 Position Sensor




Insert all 20 M7 and 2 M8 screws. Do not tighten.




Torque: M7, 17 Nm




Tighten the screws marked in the figure in sequence from 1 to 17.
Torque: M7, 17 Nm




Torque: M8, 24 Nm





Install the following items:
- Torque: M6, 10 Nm

- Torque: M7, 17 Nm

- Torque: M8, 24 Nm

Install the following items:
- the drive wheel and new seal. Intermediate Shaft Gasket, Auxiliaries Side
- the auxiliaries brackets. Service and Repair

Fill cooling system. Service and Repair
