Intermediate Shaft Gasket, Generator Side

Intermediate shaft gasket, generator side

Operation number: 21576-3






Removal

Remove the alternator. Service and Repair

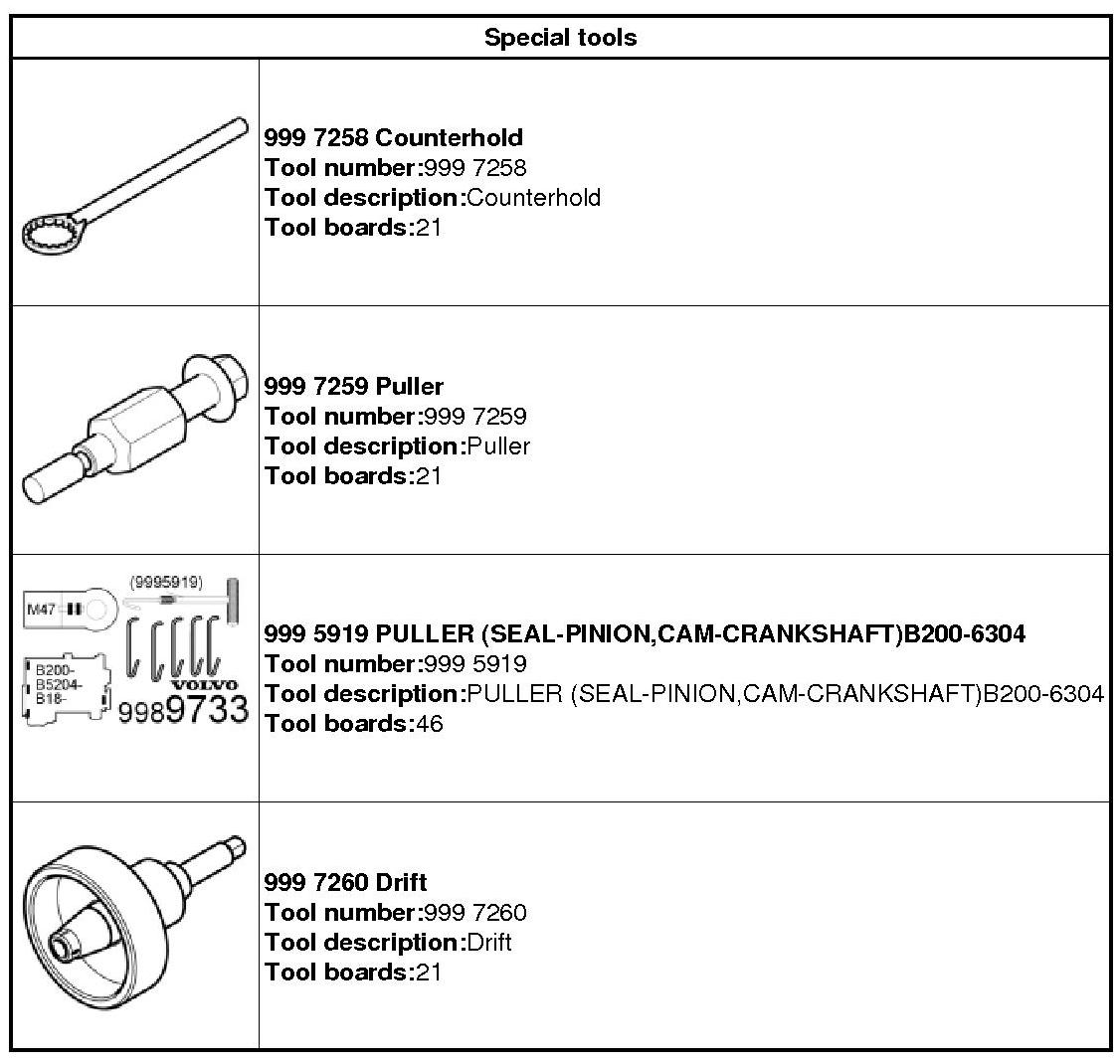

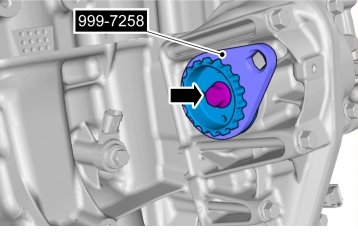

999 7258 Counterhold 999 7258 Counterhold

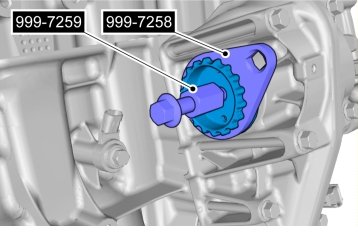

999 7258 Counterhold 999 7258 Counterhold
999 7259 Puller 999 7259 Puller

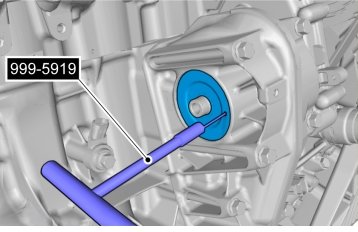

999 5919 PULLER 999 5919 Puller

Installation





Note! Make sure that the seal is correctly located.

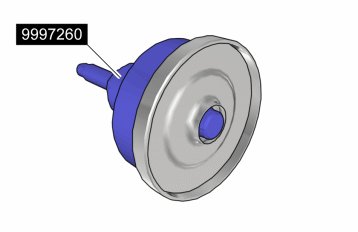

999 7260 Drift 999 7260 Drift




999 7260 Drift 999 7260 Drift




999 7258 Counterhold 999 7258 Counterhold
Torque: Intermediate shaft alternator side, 40 Nm





Install generator. Service and Repair
