Fuel System Pressure Release

Fuel System Pressure Release

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Pressure Reduction





Warning! The fuel system remains under pressure for a long time after the ignition has been switched off. The fuel pressure must be released before beginning any repairs. Failure to follow the instructions can result in personal injury.

Removal

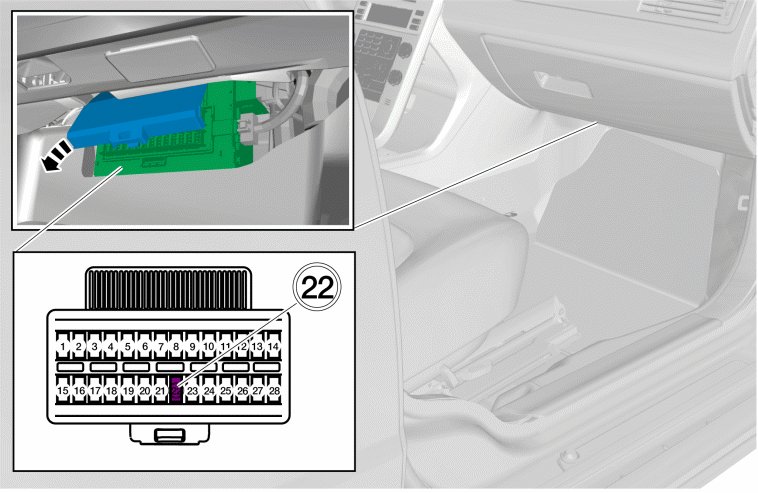

Removing the fuse for the fuel pump
Remove the fuel pump's fuse.
Start the engine and let it idle until it stops.
Turn the engine using the starter motor for approximately 5 seconds until the pressure in the fuel rail has been reduced.

Installation

Installing the fuse for the fuel pump
Install the fuse for the fuel pump (FP).
