High and Low Beam (Bi-Xenon(R))

High and Low Beam (Bi-Xenon(R))

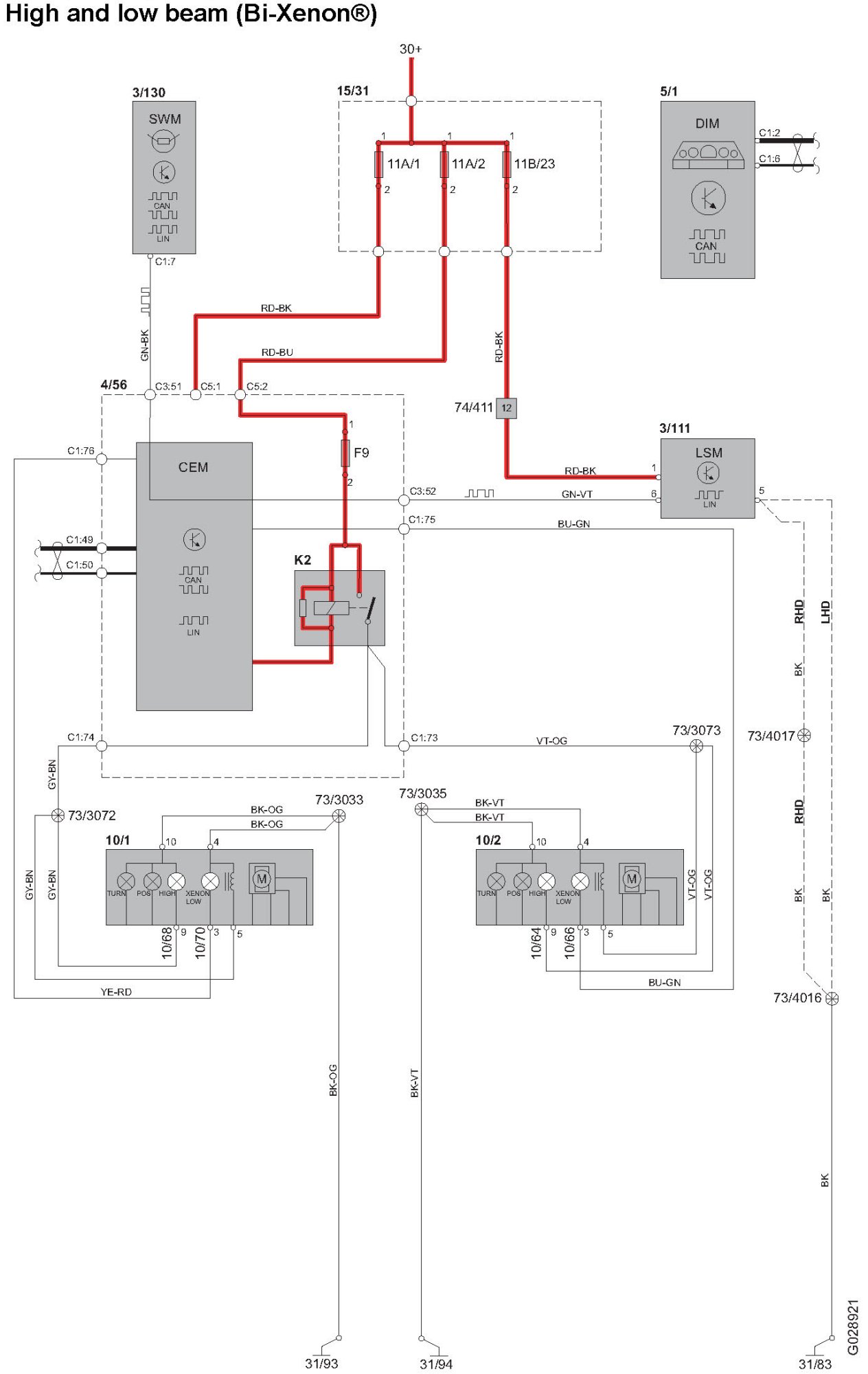

High And Low Beam (Bi-Xenon(R)):

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
