Accessory USB Unit (AUU)

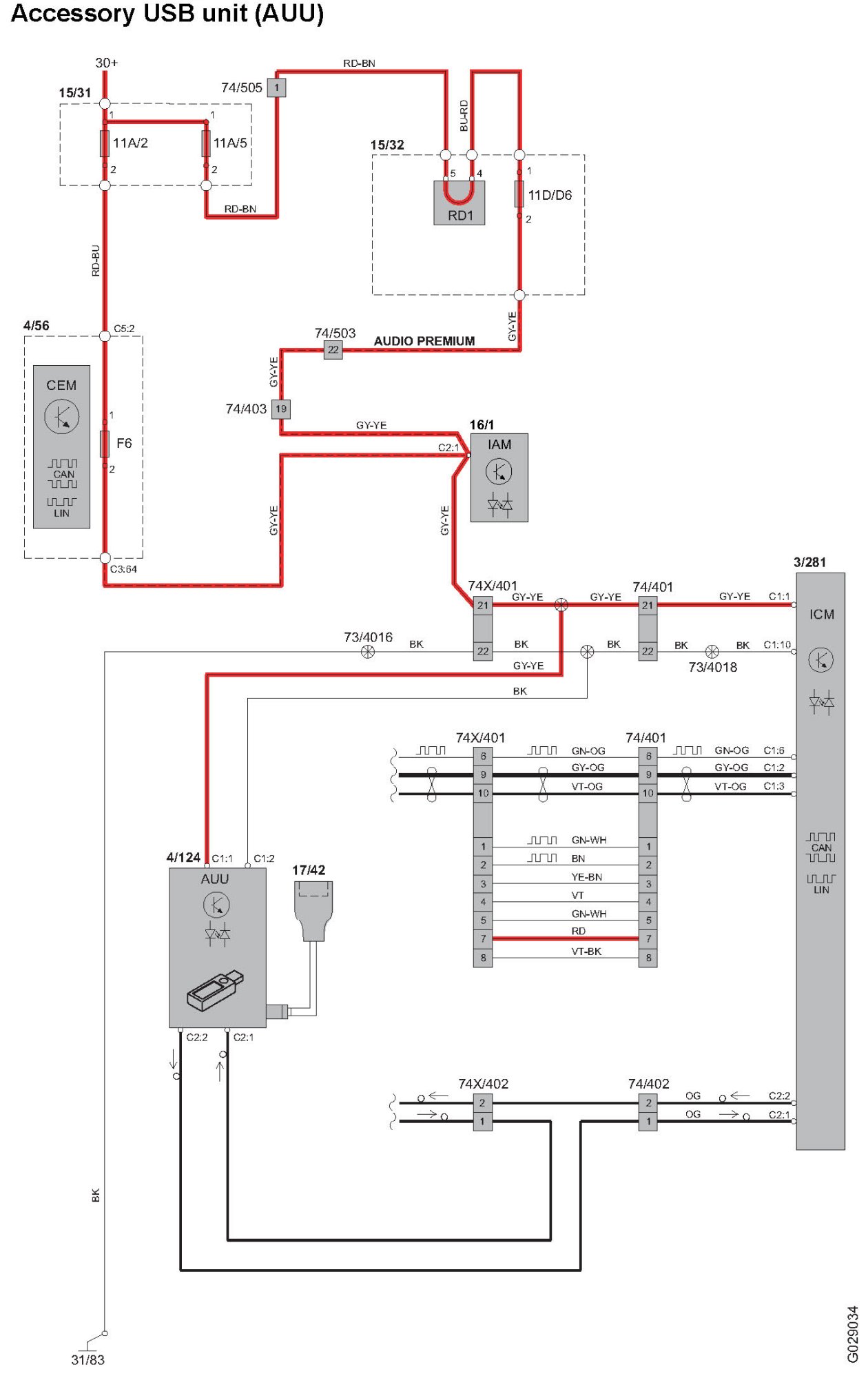

Accessory USB unit (AUU)


Accessory USB Unit (AUU):






Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
