Vacuum Pump: Service and Repair

Vacuum pump, brake booster

Operation number: 52602-2

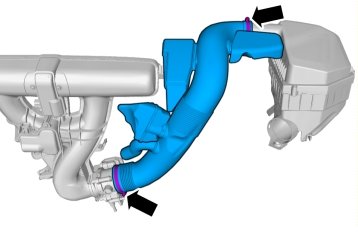

Removal

Note! Removal steps in this procedure may contain installation details.

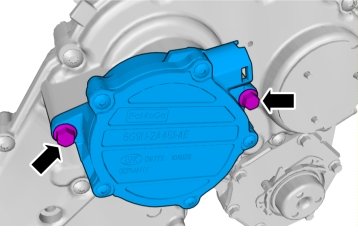

Torque: M7, 17 Nm

Installation

To install, reverse the removal procedure.
