Brake Booster

Brake booster

Operation number: 52124-2

Removal

Note! Removal steps in this procedure may contain installation details.




Torque: M8, 24 Nm

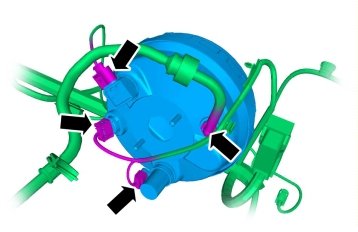

Remove master cylinder brake Refer to: Master cylinder, brake, B6304T2, L.H.D Service and Repair

Remove the wiper mechanism, windscreen Refer to: Wiper mechanism, windshield, L.H.D Wiper Mechanism, Windshield, L.H.D




Torque: M6, 10 Nm





Caution! Make sure that the brake booster push rod is correctly located.

Installation

To install, reverse the removal procedure.
