Brake Master Cylinder: Service and Repair

Master cylinder, brake

Operation number: 52130-2

Removal

Note! Removal steps in this procedure may contain installation details.

See information about safety information brake system Refer to: Safety information brake system Service Precautions

Remove the following items:
- battery Refer to: Battery Removal and Replacement
- Reservoir, brake fluid Refer to: Reservoir, brake fluid, B6304T2, L.H.D Service and Repair
- Plenum chamber Refer to: Plenum chamber Service and Repair




Torque: M6, 10 Nm





Caution! Make sure that all openings are sealed. Use new blanking caps.

Note! Make sure that the seal is correctly located.

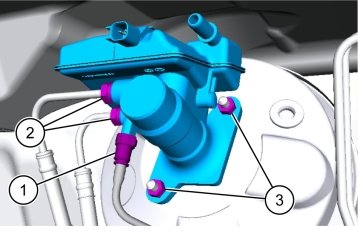

1. Torque: Ø8 mm diameter brake line, 18 Nm

2. Torque: Ø8 mm diameter brake line, 18 Nm

3. Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.

Perform bleeding air brake system Refer to: Brake system bleeding Service and Repair
