Front Brake Flexible Hose

Front Brake Flexible Hose

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel. Refer to: Wheels Service and Repair.









Note! Be prepared to collect escaping fluids.

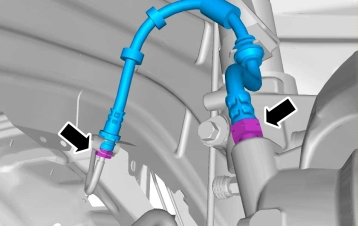

Torque: Ø6 mm diameter brake line, 14 Nm

Torque: Brake hose to front brake caliper, 18 Nm

Caution! Make sure that the brake hose is not twisted and is correctly located.

Installation

To install, reverse the removal procedure

Bleed the brakes. Refer to: Brake system bleeding Service and Repair.
