Brake Pads, Front

Brake pads, front

Operation number: 51104-0






Removal

Note! Removal steps in this procedure may contain installation details.

See information about safety information brake system Refer to: Safety information brake system Service Precautions

Remove the wheel. Service and Repair

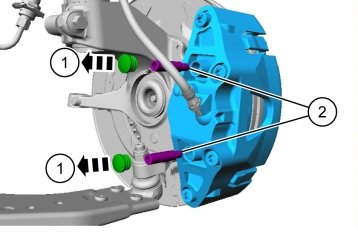

Warning! The brake caliper housing Torx bolts must not be removed.

Warning! Make sure that no load is placed on the brake hose.

Torque: Slide rail front brake caliper, 28 Nm

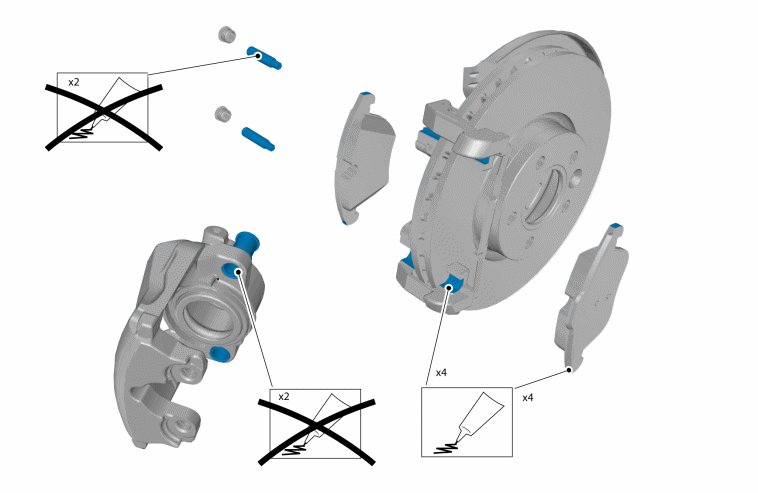

Installation





Note! Make sure that the mating faces are clean and free of foreign material.

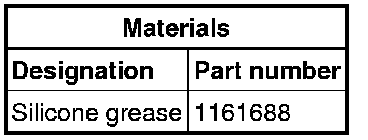

Use: Silicone grease, 1161688





Note! Make sure that the mating faces are clean and free of foreign material.

To install, reverse the removal procedure.
