Body - Windnoise From Outside Mirrors At 50MPH +

Title Windnoise appearance around outer rear view mirror

Ref No. US24535.1.0 en-US

Issuer -

Partner 3 US 7510 Volvo Cars North America

Func Group 8460

Func Desc outside mirrors

Status Released

Status Date 02-07-2012

Issue Date 12-05-2011

Reference VIDA





Attachment





Vehicle Type





CSC Customer Symptom Code

DTC Diagnostic Trouble Codes

Text

CSC = Customer Symptom Code

DTC = Diagnostic Trouble Code

Note!
If using a printed copy of this Technical Journal, first check for the latest online version.

DESCRIPTION:

Windnoise may appear at speeds from 50 MPH/80 KPH and onwards.

The noise locates around the outer rear view mirror.

SERVICE:

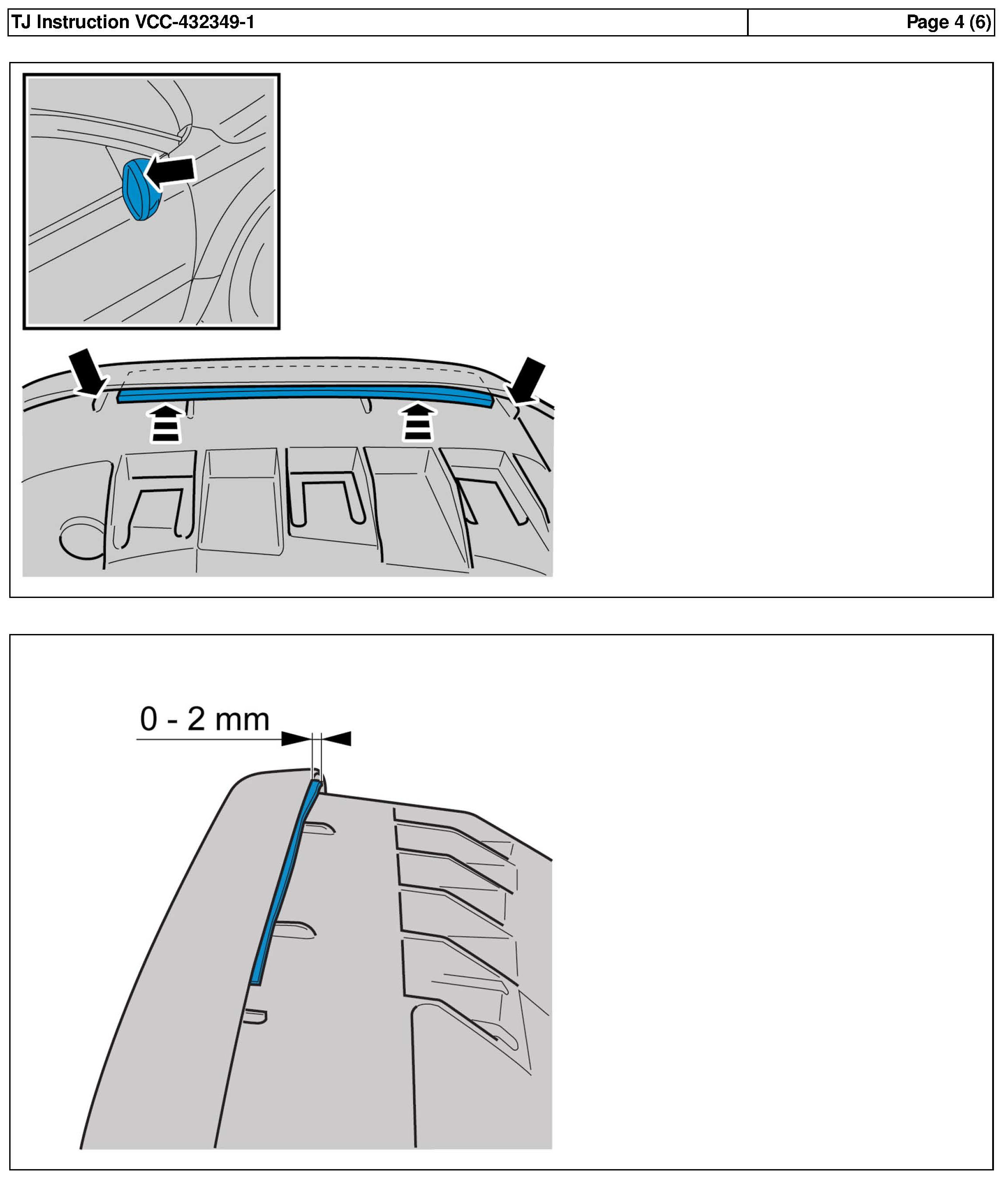

A foam has been introduced to seal off the gap between the mirror housing and the mirror cover.

Follow attached instructions.

VOLVO STANDARD TIMES GUIDE (VSTG) INFO:

Operation number *98353-2* - **Door mirrors adjust ** - "O.4 hrs"
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01

- Labor times are valid at the time of release and are subject to change.

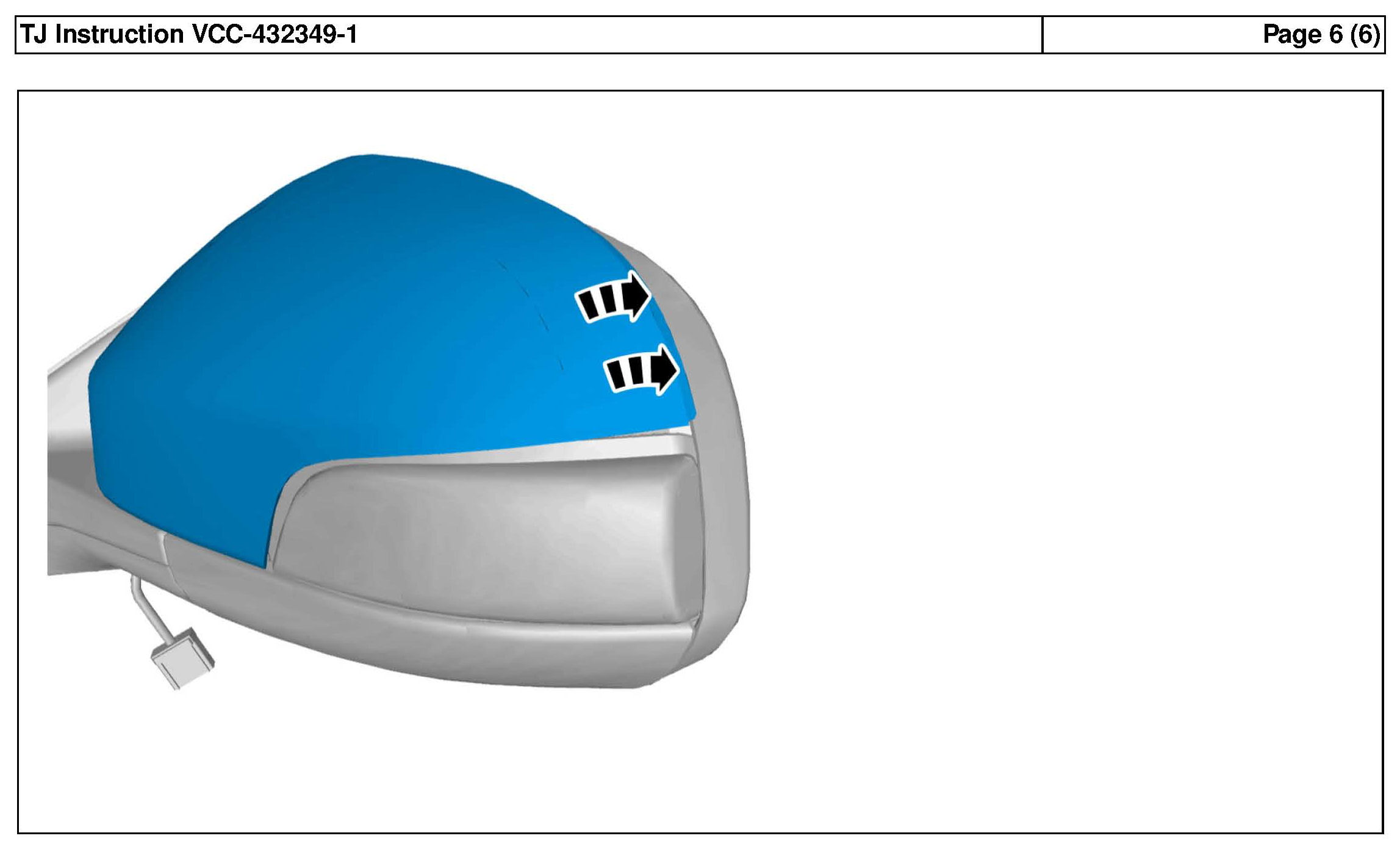

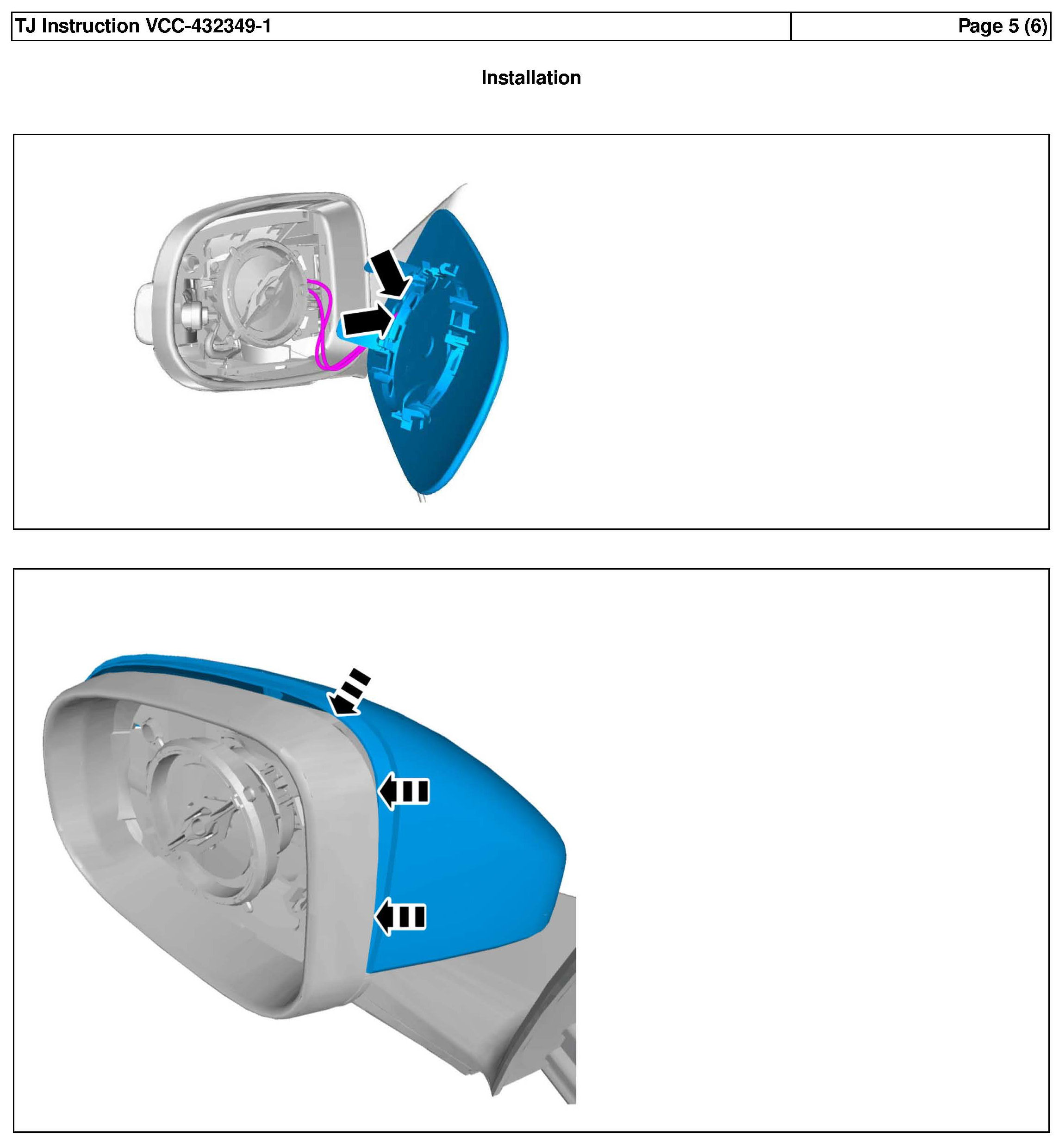

TJ attachments:
