Spoiler, Rear

Spoiler Rear

Operation number:
89121-2

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Materials:
Designation Part number
Isopropanol 1161721-4

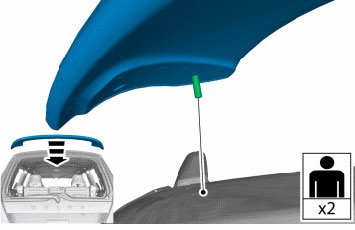

Removal

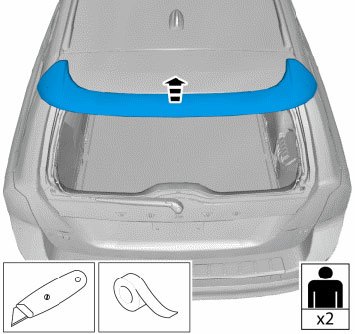

NOTE: Removal steps in this procedure may contain installation details.

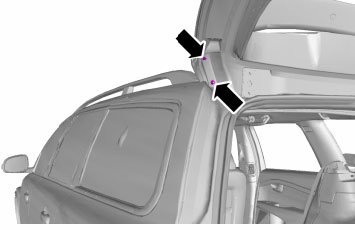

Torque: Screw spoiler rear, 5 Nm

Torque: Nut spoiler rear, 5 Nm







Installation

CAUTION:
- Make sure that the mating faces are at a minimum temperature of +20 °C.
- Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol, 1161721-4







CAUTION: Make sure that all mating faces are free of moisture.

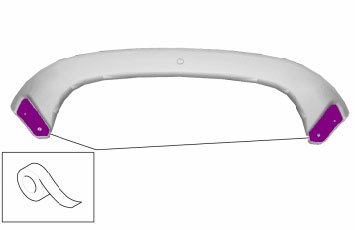

CAUTION:
- Apply even pressure along the entire component.
- Make sure that the tape has not detached from the edges of the component.
- Make sure that the customer is advised not to wash the vehicle within the next 72 hours.
