Electrically Heated Rear Seat

Electrically Heated Rear Seat

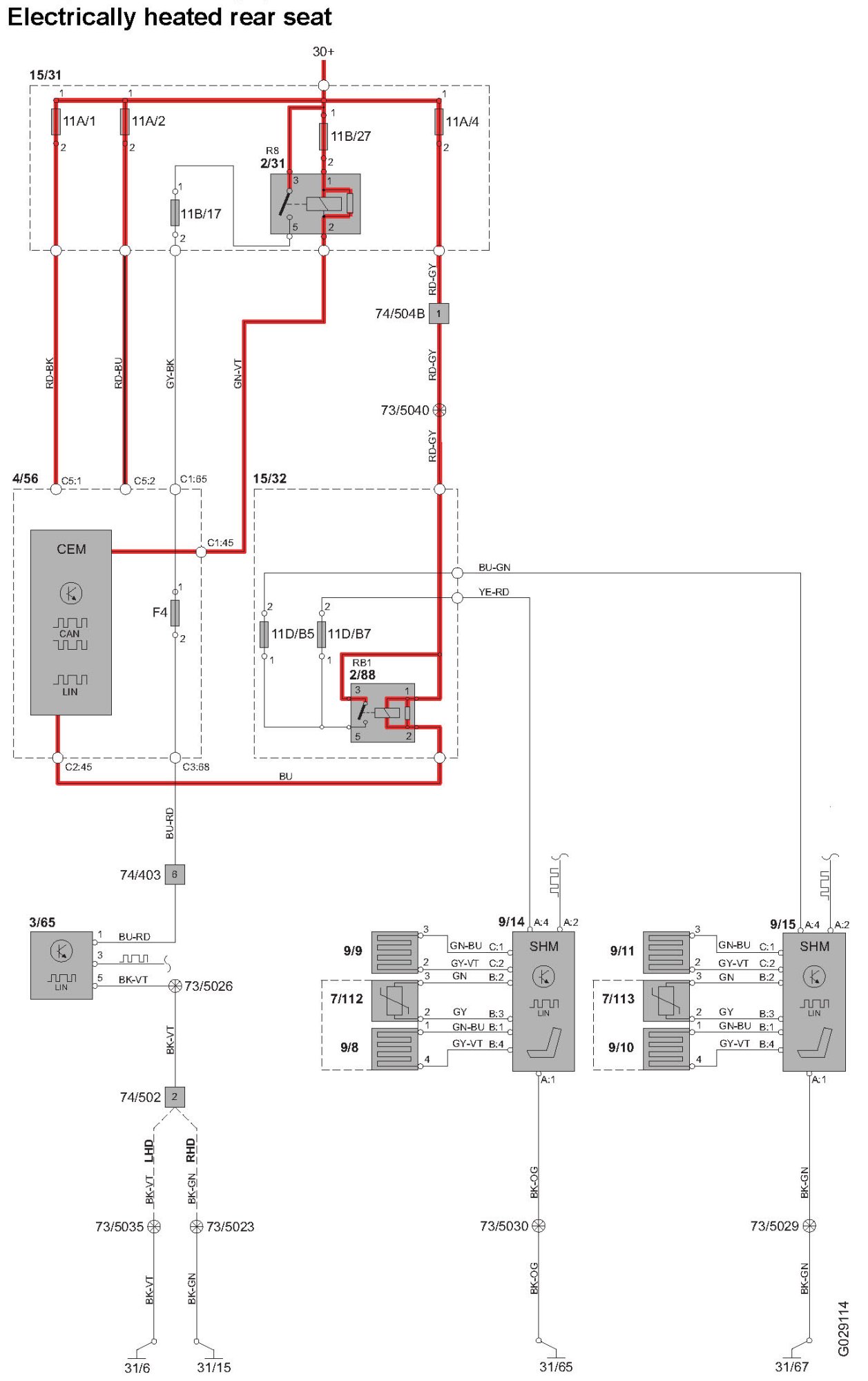

Electrically Heated Rear Seat:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: List of Components By Component Number
