Programming and Relearning

Electric motor / sun roof module (SRM), calibration

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Calibration

New calibration of electric motor / sun roof module (SRM)

Note! New calibration of the electric motor / sun roof module (SRM) is performed when installing a new electric motor / control module.

Warning! The anti-trapping function for the sun roof does not work during the calibration process. Therefore ensure that no objects are trapped in the sun roof opening.

The sun roof must be closed.
Ignition in position I.

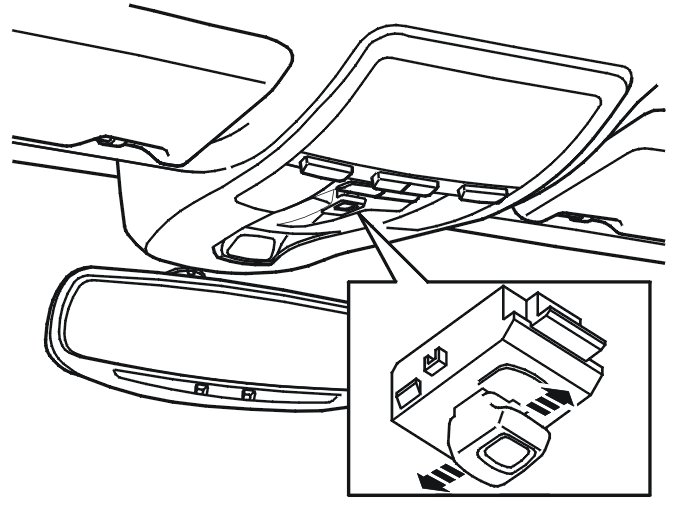

1. Press the control's rear edge upwards in the vehicle until the sunroof is in its tilt position (ventilation position).
2. Release the control.
3. Move the control forwards within 0.5 seconds. The sunroof starts a complete cycle (moves to its fully open position and then to its fully closed position). When the sunroof has stopped, calibration is complete.
