Mirror, Cover

Mirror, cover





















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Mirror, cover

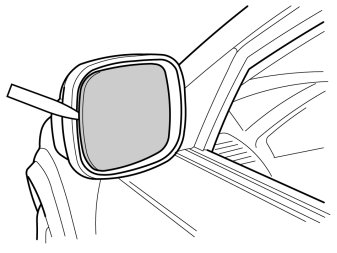

- Carefully pry off the mirror glass.

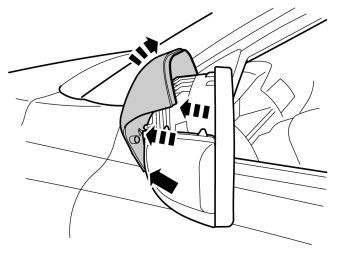

- Press out the mirror's cover using a small screwdriver.

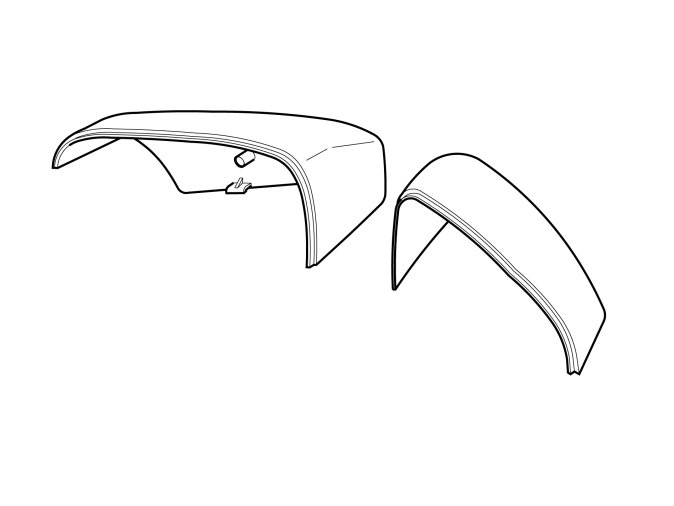

- Remove the cover. New cover is included in the kit.

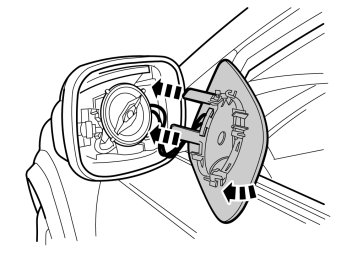

- Make sure that the damper blades end up in their grooves.
- Carefully press the mirror glass into place.

A, B, and C

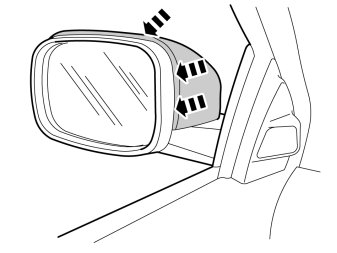

- Press the new cover on the mirror. Press all the way around so that all catches engage.

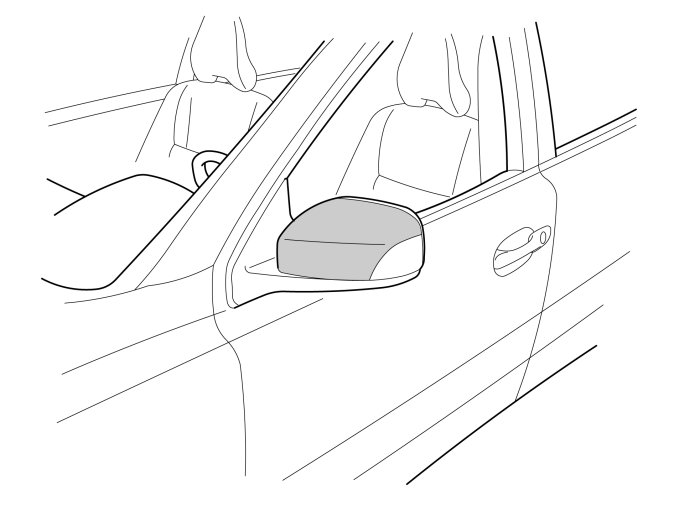

- Repeat on the car's other side.
