Body - Lower A-Pillar Wind Noise
Title Wind noise in lower A pillar areaRef No US20862.2.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 8150 Func Desc dashboard, (framework welded)
Attachment

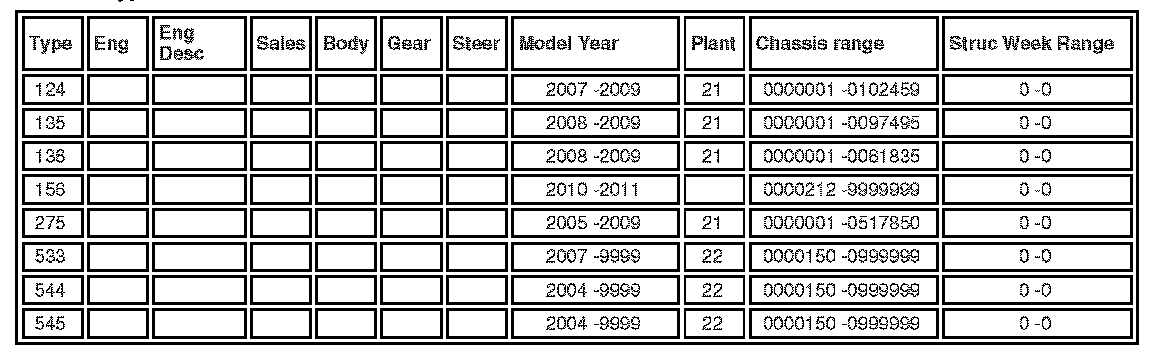

Vehicle Type

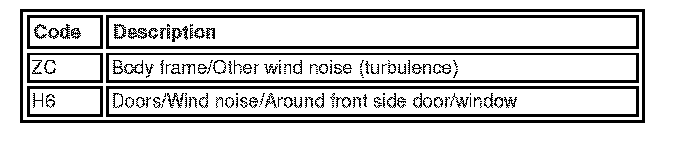

CSC
DTC
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION:
Wind tunnel tests have identified a slight whistle noise in the area of the lower A pillar.
The root cause has been found:
reference hole in the A pillar (behind the instrument side cover) is supposed to be covered with a tape. Due to production error there is a possibility that the tape is missing.
SERVICE:
In case the customer complains wind noise from A pillar lower (see attached instruction):
- Remove the instrument panel side cover
- Check for the presence of the tape if not
- Apply the tape PN 9474534 (2 if both are missing)
- Install the instrument panel side cover.

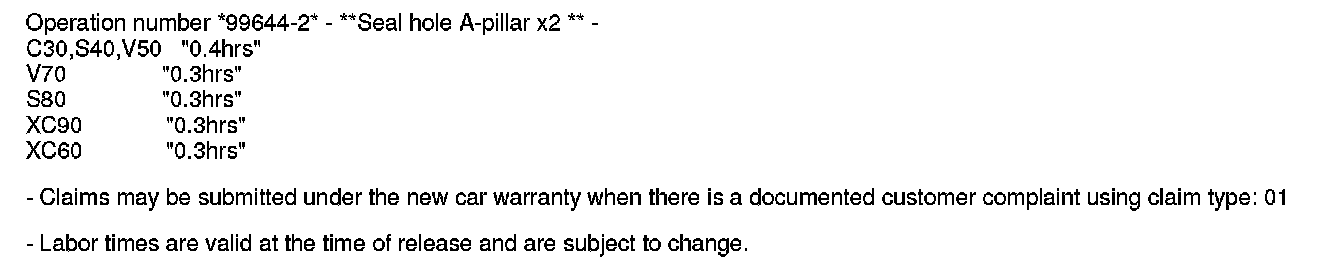

VOLVO STANDARD TIMES GUIDE (VSTG) INFO
ATTACHMENTS

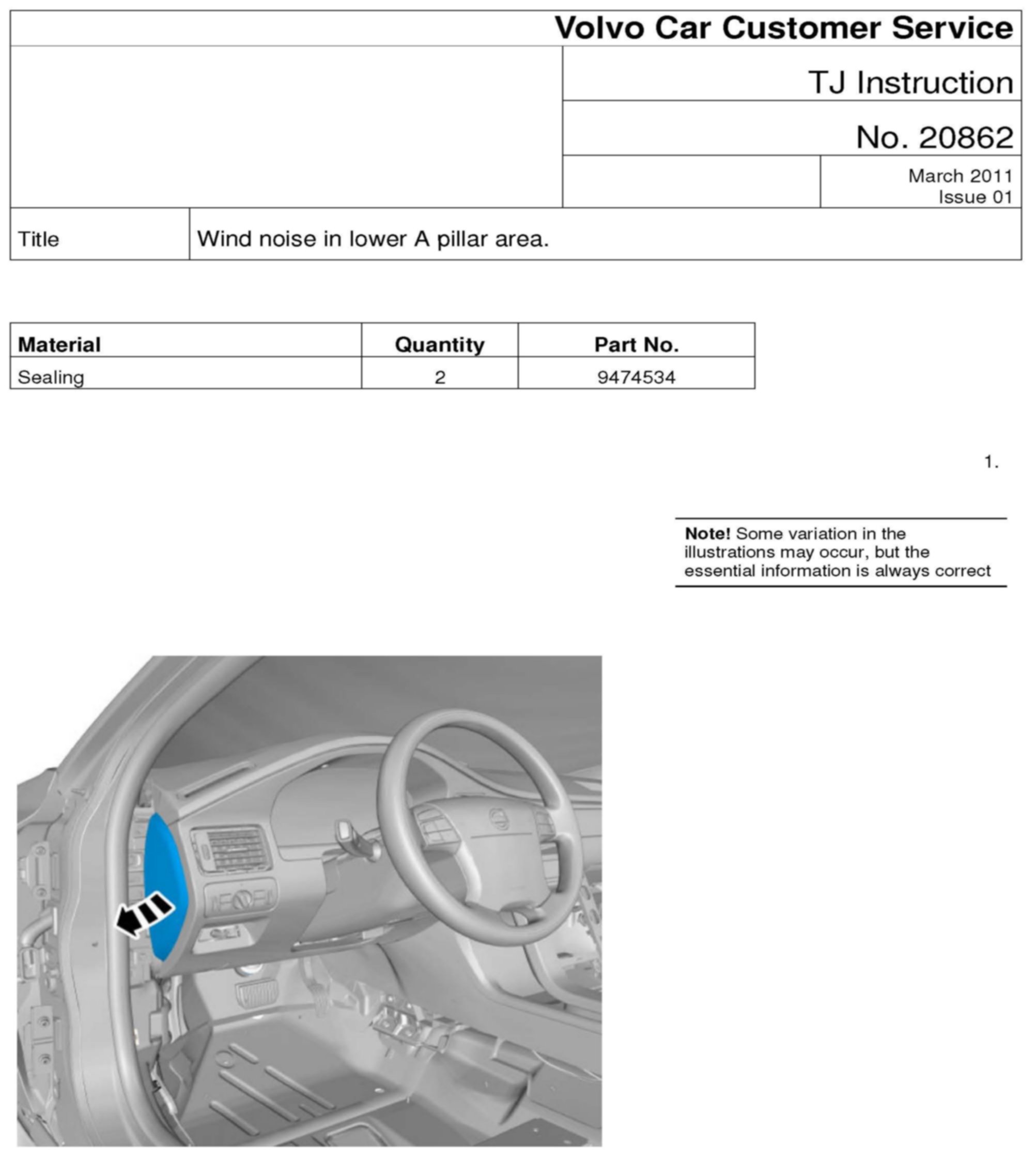

TJ Instructions
