Part 2

Sill moulding, illuminated, front (Continued)

Illustrations A and B

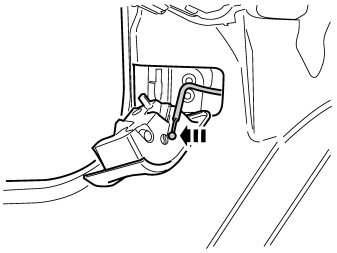

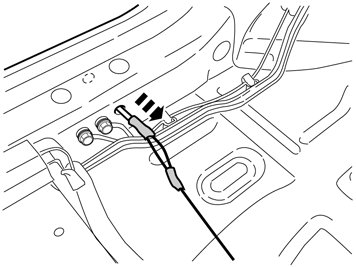

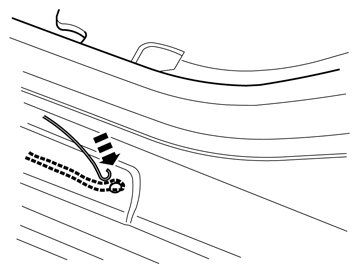

- Insert the bent wire down through the hole in the door sill and catch the cable/tension spring and pull the cable out through the hole.









- Tape both the cable ends, one at the back at the casing and the cable that is to be used for routing, and the other at the front at the cable that is to be used for routing.




- Now route the cable through carefully.
- Remove the tape and the cable that is used for routing.

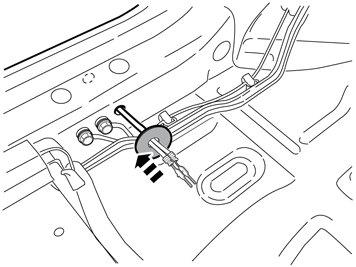

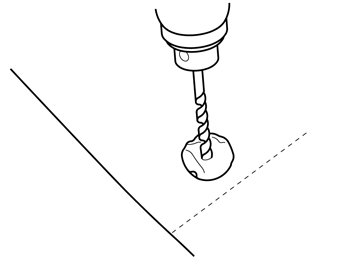

- Drill out the hole in the blank seal washer using a - 6 mm (1/4") drill bit.




- Thread the washer onto the cable and secure over the hole.

Illustration A

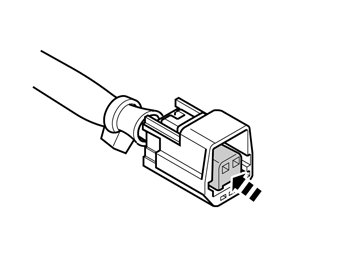

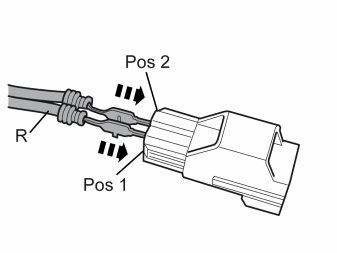

- Get a loose male connector from the kit and press in the cable terminals on the two cable ends on the sill moulding, cable with red (R) in position 1, the other in position 2, until a click is heard.

Illustration B




- Press on the white catch inside the connector.




- Clean the marked surface using isopropanol and wipe dry.

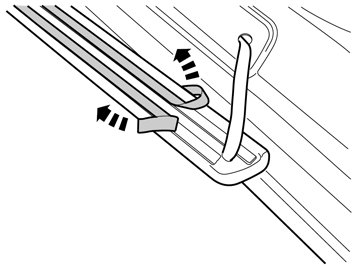

- Fold up a section of both pieces of protective tape on top of the moulding.




- Now insert the cable down into the hole in the sill and pull it out the other end.

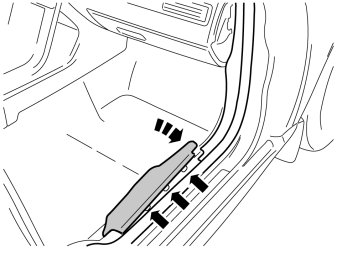

- Place the moulding where the old one was and carefully press the rear edge so that it attaches.

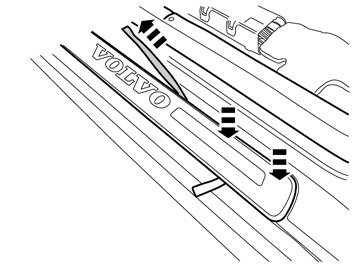

- Pull off the protective tape maintaining the position of the moulding. Press the moulding down after detaching the protective tape.

Note! Do not press too hard and too close to the protective tape as this risks it coming loose.

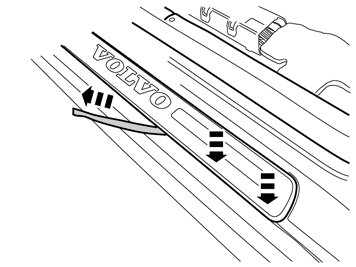

- Now remove the final piece of protective tape and repeat the previous point.

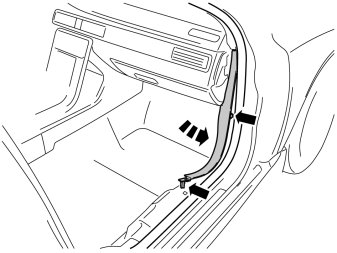

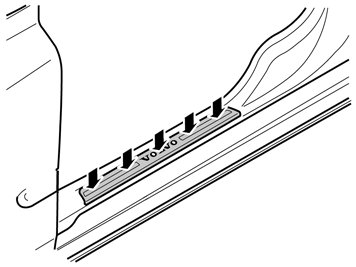

- Press the sill moulding down firmly with a pressure of approximately 2 kg/cm² along its length.
- Repeat steps 21 - 33 on the other side.





The position of the cable harness is the same on left-hand drive cars as on right-hand drive cars.
- Take the long cable harness from the kit.

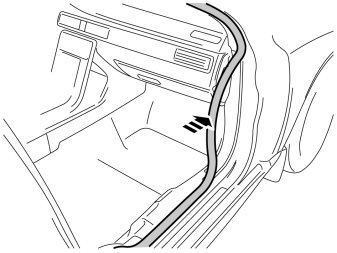

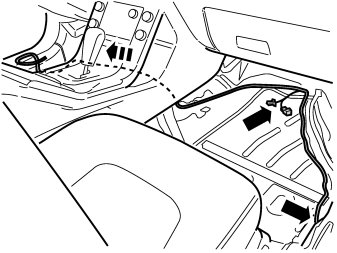

- Insert the longer cable end down through the center console, along the air ducts and out toward the left-hand front door. Route the shorter cable toward the right-hand door. Route the cable on the right-hand side at the front edge of the floor along the existing cable harnesses as illustrated.
- Place the green connectors under the glove box or pedal box (applies to right-hand drive cars).
- Ensure that the protective cover is correctly located where the cable goes through the center console. Route the cable so that it does not become damaged by moving parts in the center console.

Illustration A




- Get a loose female connector from the kit and press in the cable terminals on the two cable ends on the sill moulding, cable with red (R) marking in position 1 and the other in position 2, until a click is heard.

Illustration B




- Press on the white catch inside the connector.

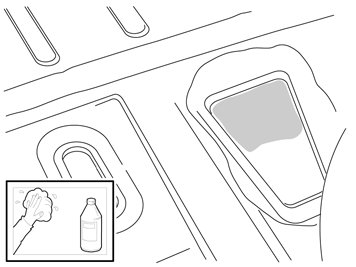

- Clean the marked surface in front of the air ducts using isopropanol and wipe dry.




- Remove the protective film from the transformer's attaching tape.

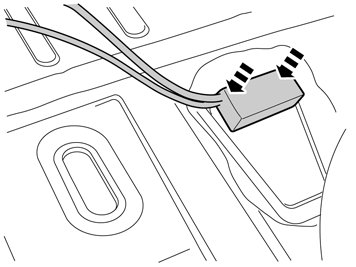

- Press the transformer onto the cleaned surface.

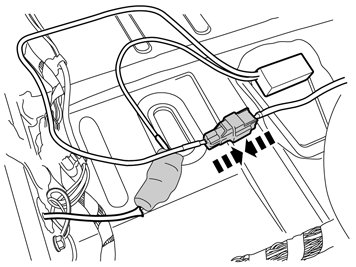

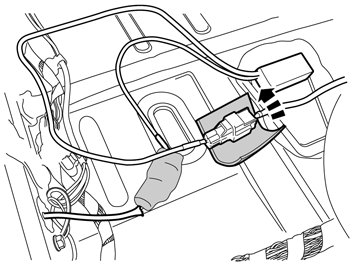

- Connect the connector on the cable from the sill moulding to the corresponding one in the transformer.

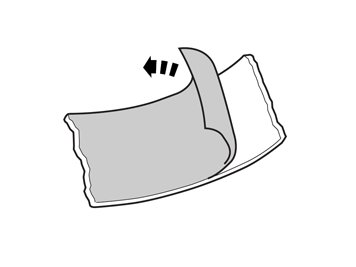

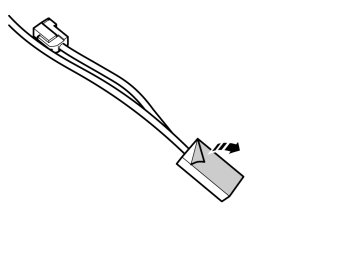

- Remove the protective tape from one of the pieces of foam tape from the kit.




- Wrap the joined connectors in the foam tape.




- Connect the remaining connector on the cable to the transformer to the corresponding one in the large cable harness.




- Remove the protective tape from one of the pieces of foam tape from the kit.




- Wrap the joined connectors in the foam tape.

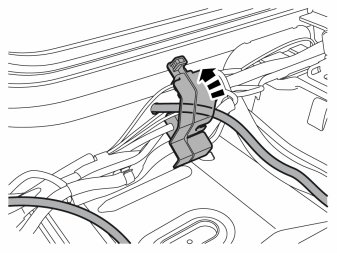

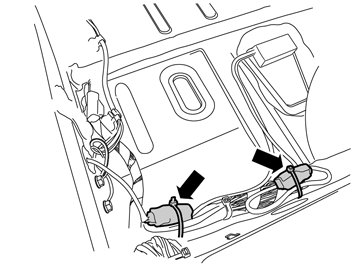

- Distribute the cable excess in long loops at the existing cable harness and clamp it together with the foam tape wrapped connectors using cable ties from the kit.
- Repeat steps 35 - 45 on the other side.

Only applies to left-hand drive cars

Illustration A

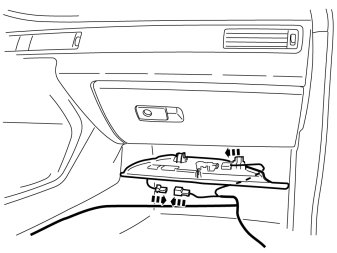

- Connect the green male connector for the prerouted cable harness to the courtesy lighting.
- Connect the remaining green connectors to each other.

Illustration B

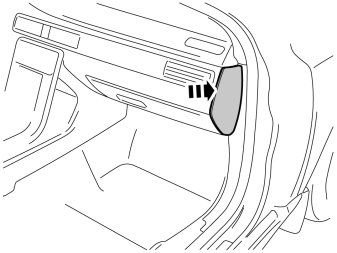

- Reinstall the panel under the glove compartment.

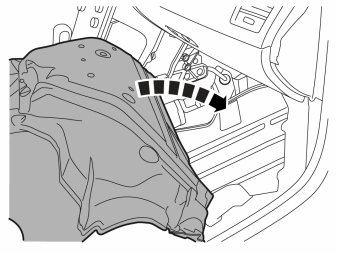

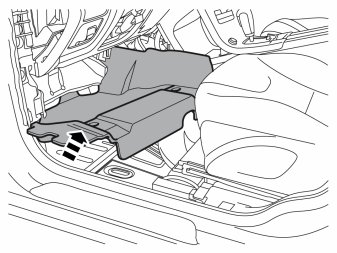

- Fold back the carpets.

Only applies to right-hand drive cars.

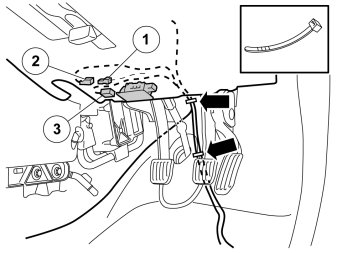

- Disconnect the 2-pin male connector (1) from the courtesy lighting and connect it to the corresponding connector (2) in the prerouted cable harness.
- Connect the remaining connector (3) to the courtesy lighting.
- Secure the cable in front of the pedal box by the existing wiring using cable ties from the kit. Ensure that it does not rub against the steering shaft and other moving parts under the dashboard.

Applies to all models
































































- Turn the ignition key to position II.
- Reconnect the battery negative lead
