Body/Frame - Front Sub-Frame Rear Bushing Replacement

Retailer Technical Journal 20261
Front subframe rear bushing,
Removal and installation
Date 03-12-2009

Reference: VIDA

Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.

NOTE!
THIS DOCUMENT SUPERSEDES THE PREVIOUS VERSION OF RTJ 20261
(Tech-Net Note 21-26) DATED 12-13-2007. The bushing installation procedure using the existing tools has been modified and will be effective until a new tool is introduced.

The new procedure using the new tool will be in VIDA 2009B. PLEASE UPDATE YOUR FILES.

AFFECTED VEHICLES

DESCRIPTION
This document is a supplement to VIDA to better explain the process of removing and installing subframe bushings.

TOOLS
See VIDA
Removal, replacement and installation
Engine with engine mountings and equipment
Engine
Engine mounting

SERVICE
The procedure is explained in VIDA, this RTJ clarifies the procedure.





Removal of bushing - tools

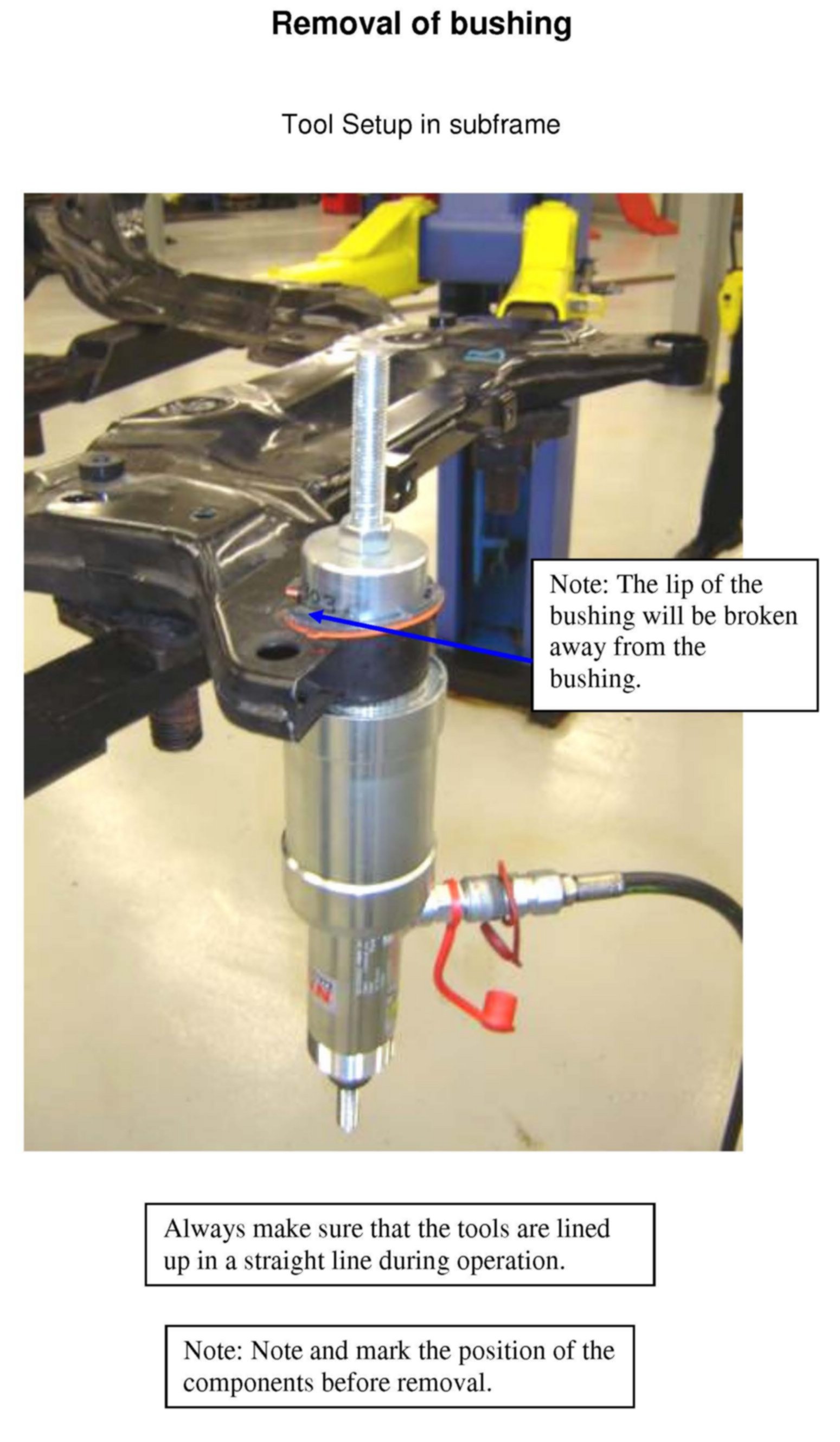

Removal of bushing - Tool Setup in subframe





Installation of bushing - Tools

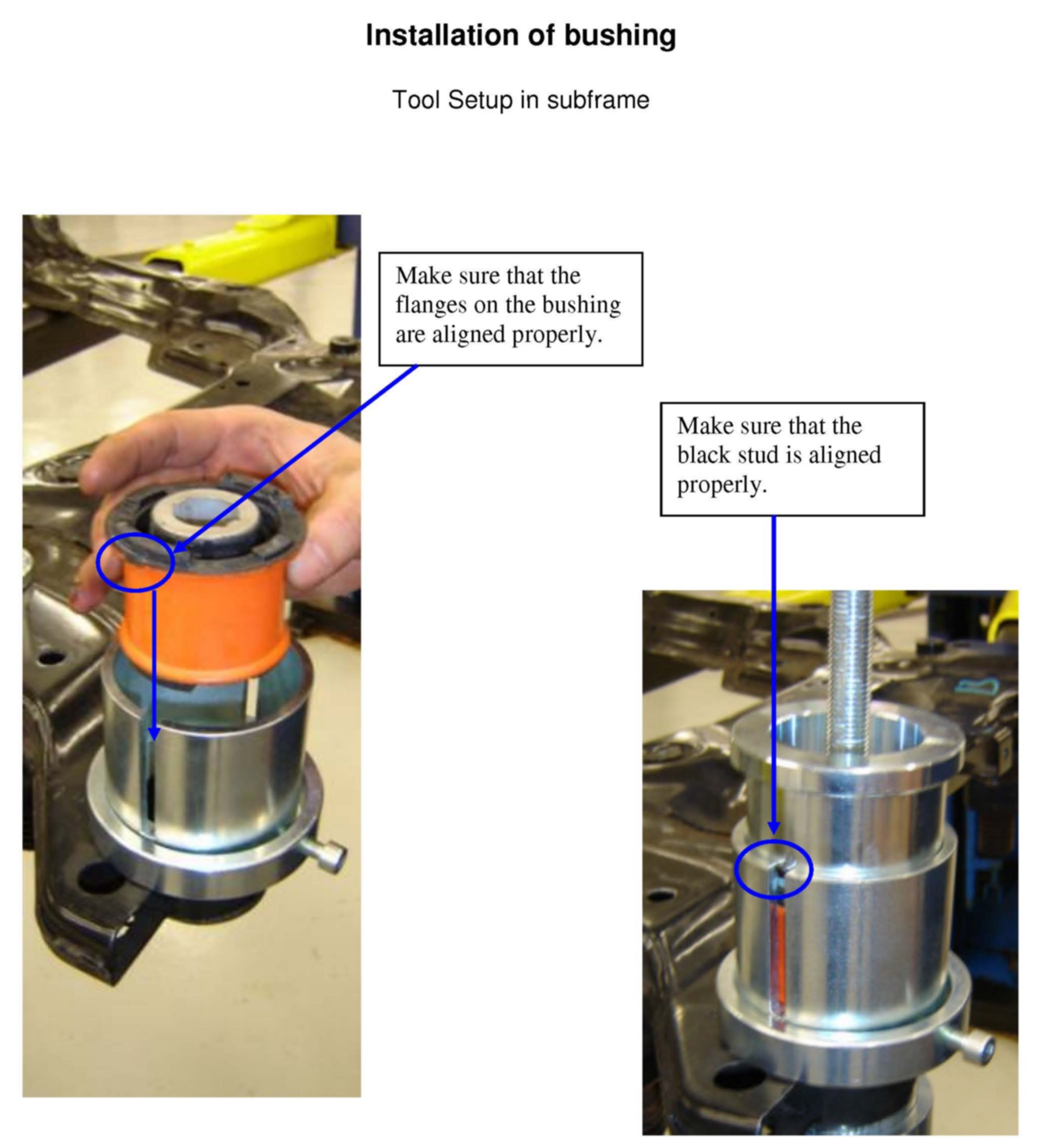

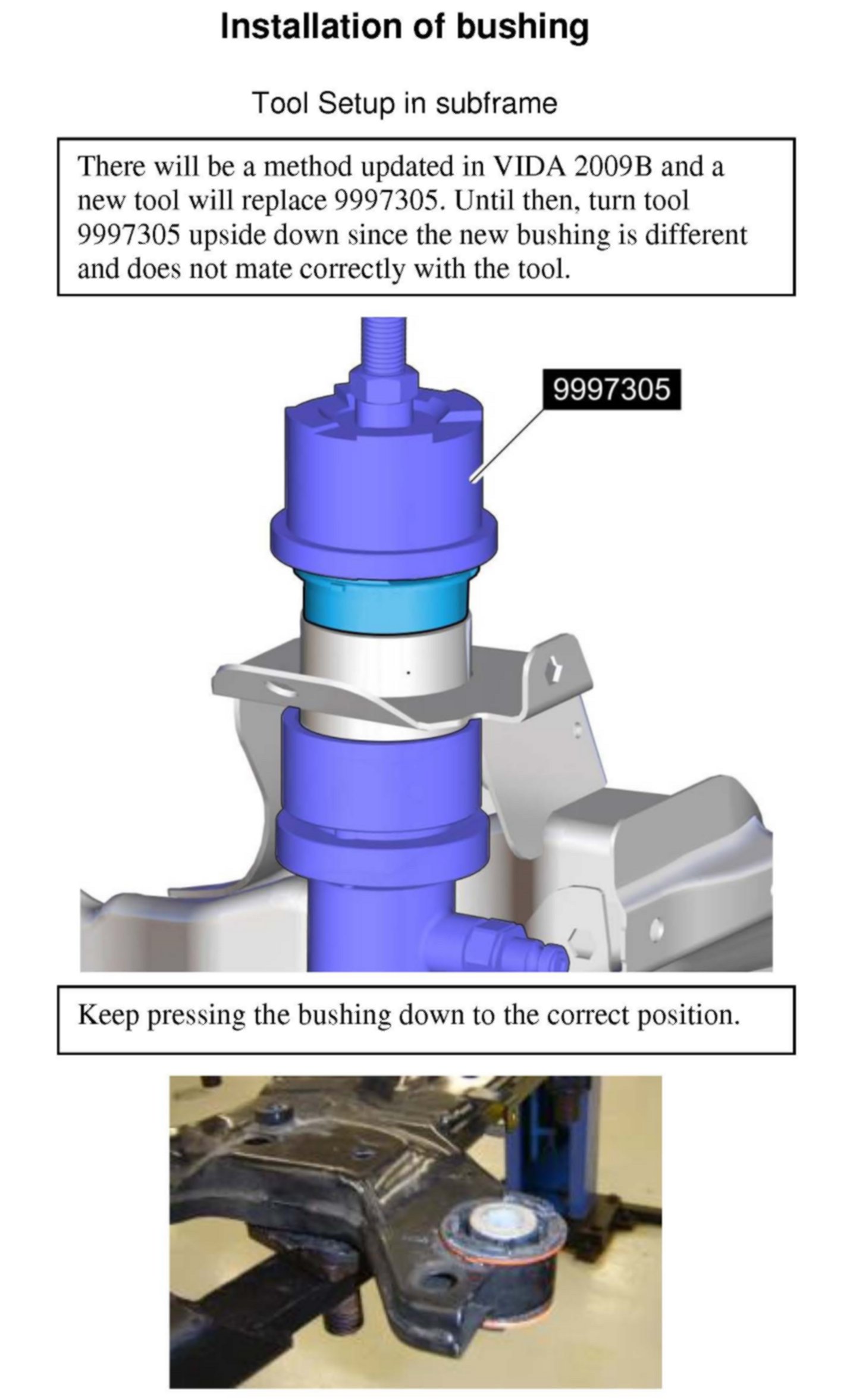

Installation of bushing - Tool Setup in subframe





WARRANTY CLAIM INFORMATION
