Front Bushing Subframe Front

Front bushing subframe front

Operation number: 21824-2

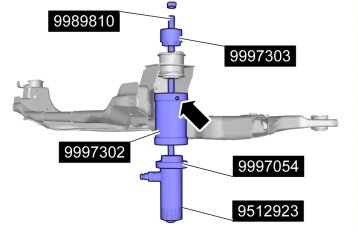

Removal

Remove the subframe front Refer to: Front subframe Front Subframe








951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder
999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12
998 9810 Towbar 998 9810 Towbar
999 7303 Drift 999 7303 Drift
999 7302 Socket 999 7302 Socket

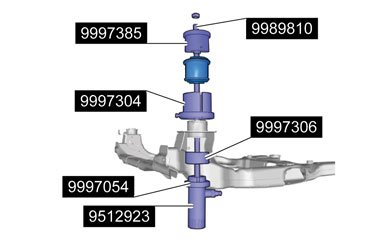

Installation




951 2923 Hydraulic hole cylinder 951 2923 Hydraulic Hole Cylinder
999 7054 Adapter incl. 2x MC6C M6X12 999 7054 Adapter Incl. 2x MC6C M6X12
998 9810 Towbar 998 9810 Towbar
999 7385 999 7385
999 7304 Cone 999 7304 Cone
999 7306 Counterhold 999 7306 Counterhold













To install, reverse the removal procedure.
