Trunk / Liftgate Latch: Service and Repair

Trunk Lid/tailgate Lock Mechanism

Operation number:
83434-2

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Removal

NOTE: Removal steps in this procedure may contain installation details.

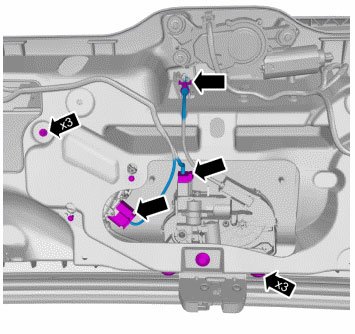

Remove the panel.







Torque: M8, 24 Nm

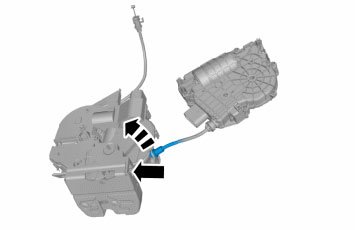

Only applies to vehicles equipped with power tailgate







Torque: M8, 24 Nm










Installation

To install, reverse the removal procedure.
