Trunk / Liftgate Hinge: Service and Repair

Liftgate Hinge

Operation number: 83220-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- gas struts Refer to: Luggage Compartment Lid Strut Service and Repair
- tailgate Refer to: Tailgate Service and Repair
- hydraulic cylinder Refer to: Luggage Compartment Lid Lift Cylinder Service and Repair Luggage Compartment Lid Lift Cylinder Service and Repair

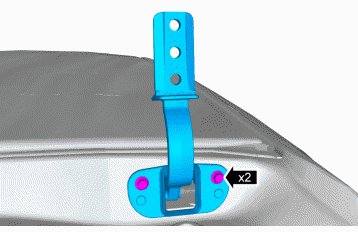

Torque: M8, 24 Nm




Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
