Hood Latch: Service and Repair

Door latch hood

Operation number: 82115-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the radiator masking Refer to: Radiator Grille Service and Repair Radiator Grille Service and Repair

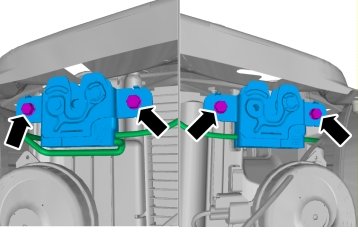

Torque: M6, 10 Nm





Note! Make sure that the bolts are not tightened until the hood is closed.

Torque: M6, 10 Nm









Installation

To install, reverse the removal procedure.
