Hood Hinge: Service and Repair
Hood hinge
Operation number:
82114-2

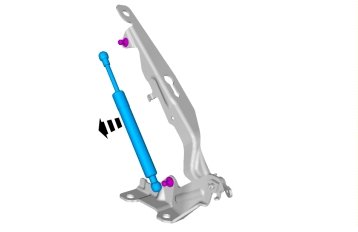

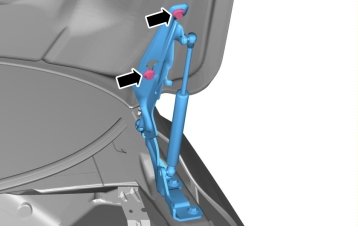

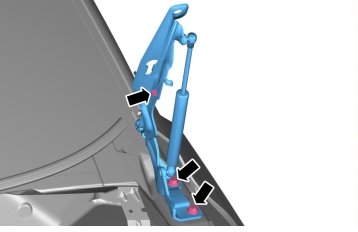

Removal
Torque:
M8, 24 Nm
Torque:
M8, 24 Nm
