Rear Door: Service and Repair

Side Door Rear

Operation number:
83112-2

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Materials:
Designation Part number
Insulation mat 282315

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the following items:

- panel side door rear.

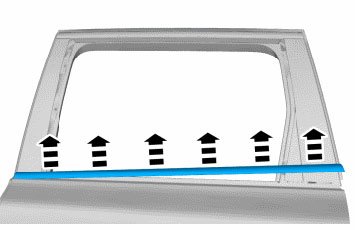

- trim strip, lower, side door, rear.

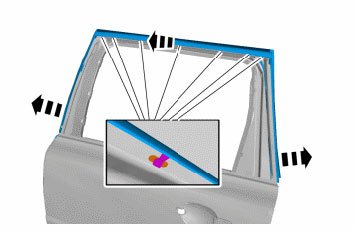

- weatherstrip, side door, rear.

- window, side door, rear.

- lift mechanism, side door, rear.

- doorstop, side door, rear.

CAUTION: Do not bend the component.

Use: Insulation mat, 282315

Torque: M8, 24 Nm

Installation

Rust proof.

To install, reverse the removal procedure.
