Rear Door Hinge: Service and Repair

Door Half Hinge

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Remove components. Refer to: Side section, exposing Side section, exposing .

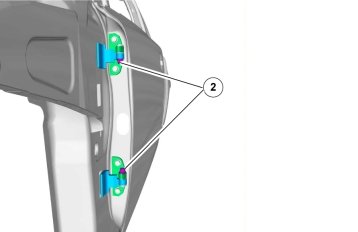

Information about how the body components are welded. Refer to: Welding, general .

Installation

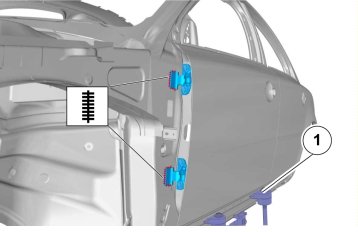

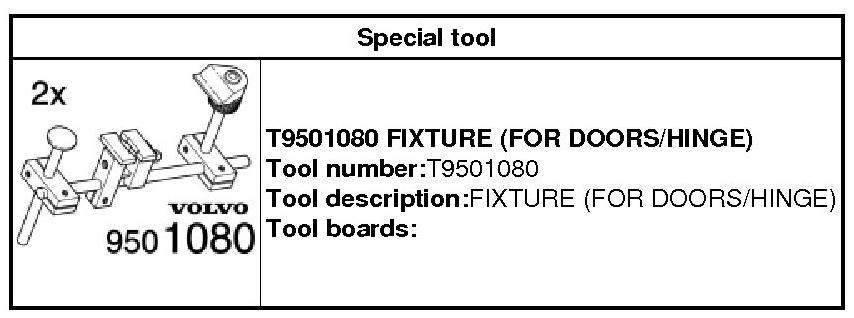

(1) 950 1080 Fixture 950 1080 Fixture.
Align the door. Refer to: Doors and hatches .

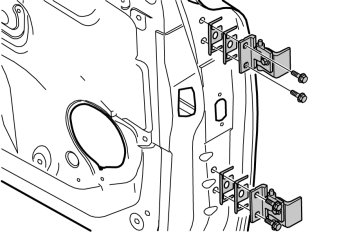

Torque: M8, 24 Nm

Seal the body. Refer to: Body seal, sealing diagram .

Rust proof the body. Refer to: Rustproofing .

Install components. Refer to: Side section, exposing Side section, exposing .
