Front Door: Service and Repair

Front Door

Operation number:
83120-2

NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the following items:

- the door cassette.

Refer to: Lift mechanism, front door

- the rear view mirror.

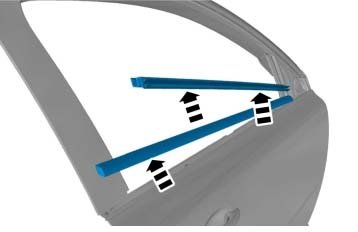

- the lower trim molding.

- the front door's door stop.

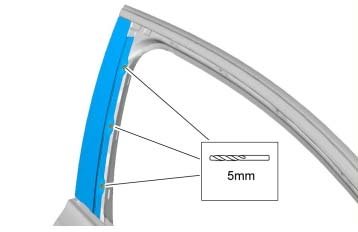

CAUTION: Do not bend the components.













CAUTION: Do not bend the components.













Torque: M8, 24 Nm







Installation

To install, reverse the removal procedure.

Rust proof.
