Radio, Stereo, and Compact Disc: Service and Repair

Satellite radio





























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.






Satellite radio

Note! Some steps in these installation instructions are presented with illustration only.

Note! On cars with a subwoofer, a fibre optic adapter cable is required to be able to connect the satellite receiver.

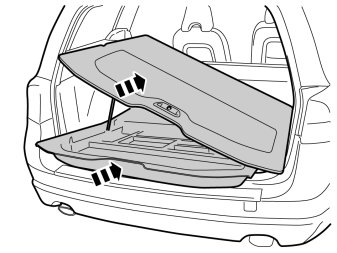

- Fold up the luggage compartment floor.
- Pull it from the mountings at the front edge.
- Pull out the luggage compartment floor and the storage box slightly to access the area behind the backrest.

Note! Note the luggage compartment floor's gas strut.

Steps 3-6 apply to cars with subwoofer

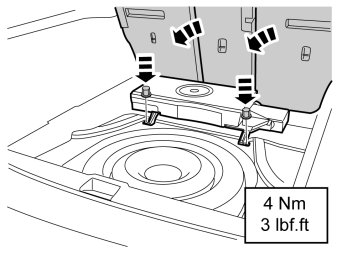

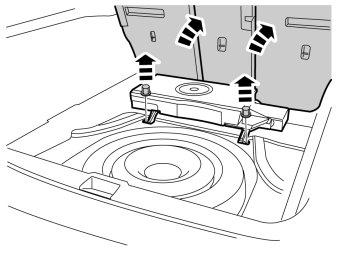

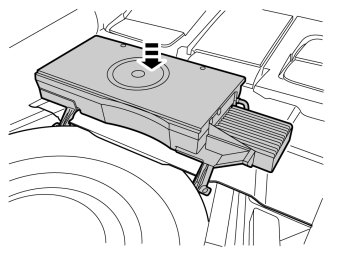

- Remove the rear plastic nuts for the subwoofer.
- Fold the backrest forward.

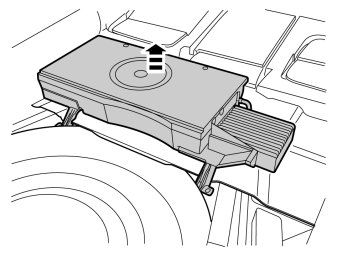

- Disconnect the connectors from the subwoofer.

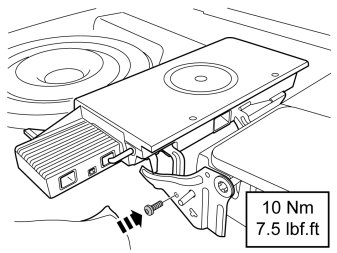

- Remove the screw from the right-hand mounting.




- Remove the screw from the left-hand mounting.





Installation

Applies to all models






Applies to cars without subwoofer

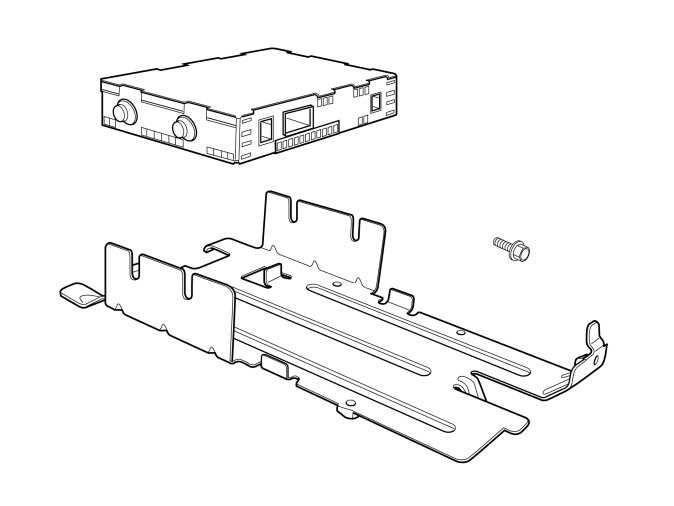

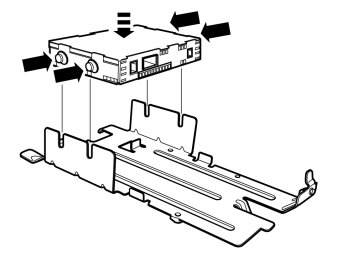

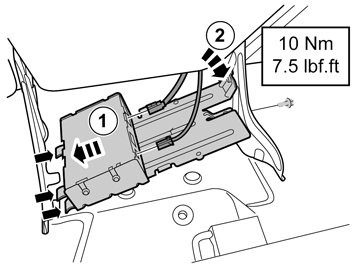

- Install the satellite unit with bracket on the reverse of the rear backrest.

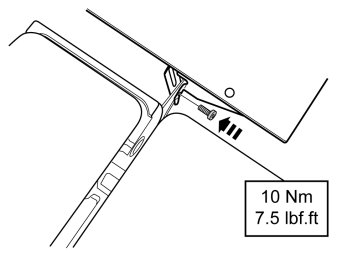

- Install the screw and torque tighten to 10 Nm (7.5 ft.lb.)
- Connect pre-routed cables to the unit:
power supply, antenna cableand fibre optic cable.

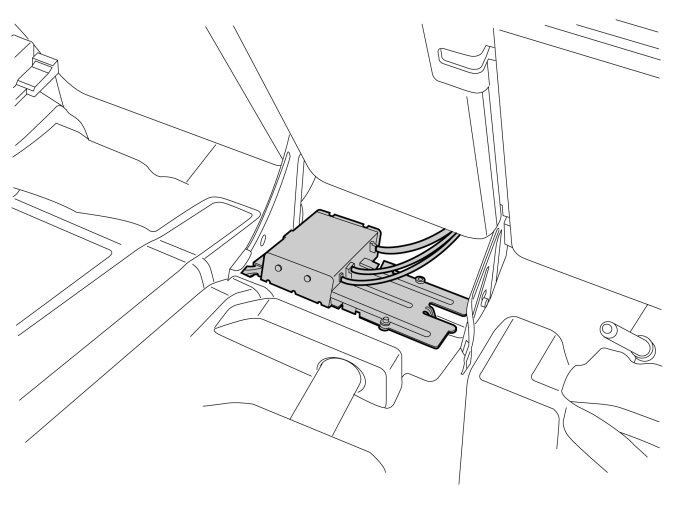

These are located under the floor carpet in the connection for the location of the unit.

Steps 9-14 apply to cars with subwoofer

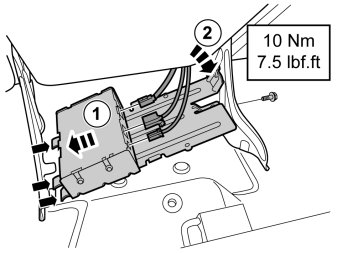

- Install the satellite unit with bracket on the reverse of the rear backrest.
- Install the screw and torque tighten to 10 Nm (7.5 ft.lb.)
- Connect pre-routed cables to the unit:
power supply and antenna cable.
These are located under the floor carpet in the connection for the location of the unit. The new fibre optic adapter cable is connected later.

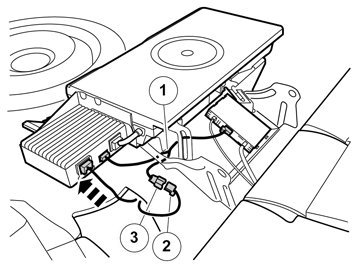

- Take the fibre optic adapter cable (1) from the kit and connect both the male connectors to the Subwoofer, respectively, Sirius unit.
- Connect the male connector (2), which was previously disconnected from the Subwoofer, to the female connector (3) in the fibre optic adapter cable.
- Connect the remaining power supply cable to the Subwoofer. Ensure that all cables are positioned to prevent them from being cut off.





Applies to all models









- Download software for the accessory's function according to service information in VIDA. (See VIDA or accessories catalogue for article number on software).
