Part 3

Navigation system, portable, Installation kit TMC (Continued)

Illustrations A and B

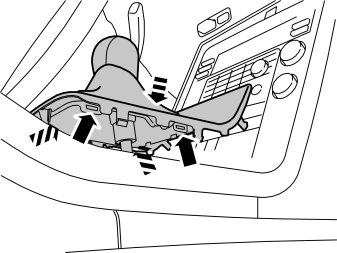

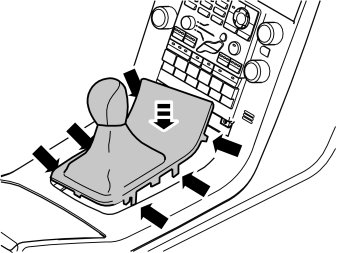

- Remove the gear lever panel from the boot. First press in the four catches around the panel. Then pull the panel up. On certain car models there is a keypad at the front edge of the panel. If this is the case, remove the connector on the right-hand side in the center console to be able to remove the panel.

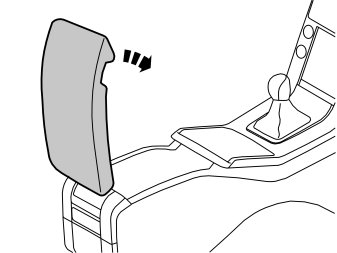

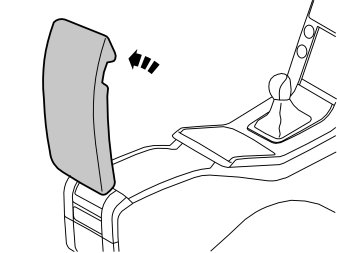

- Fold up the cover for the storage compartment in the rear section of the tunnel console.

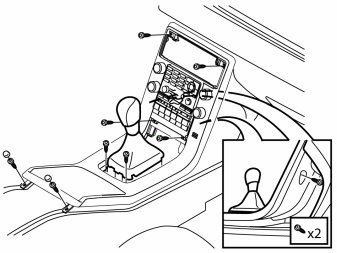

- Remove the covers and screws at the rear edge of the upper panel section of the center console. First remove the screws on the rear of the panel and then remove the remaining screws on the top, ten in total.

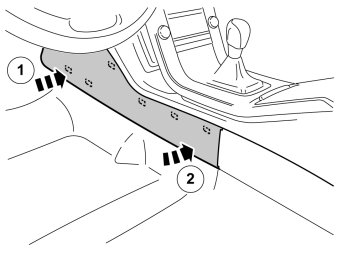

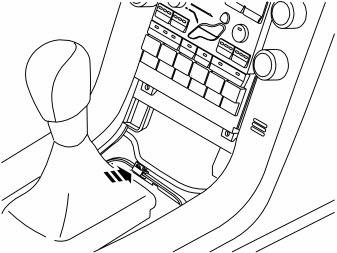

- Remove the edge clip with cable from the lower section of the center console.

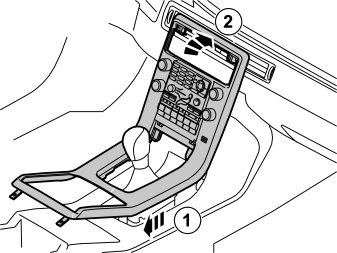

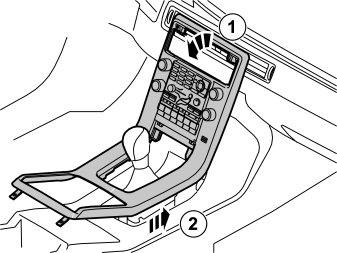

- Remove the upper section of the panel by moving it backward at the front edge and then lifting it out from the front edge of the storage compartment.

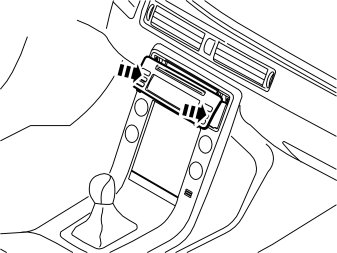

- Remove the two screws in the media player and pull it out and place it in front of the gear lever.




- Disconnect the connector for the antenna from the media player.

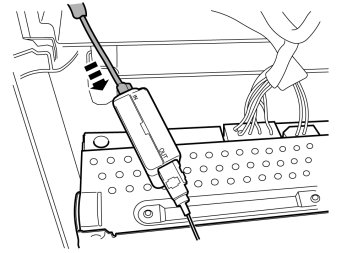

- Take the TMC unit and the antenna cable from the kit and connect the antenna cable to OUT on the TMC unit.

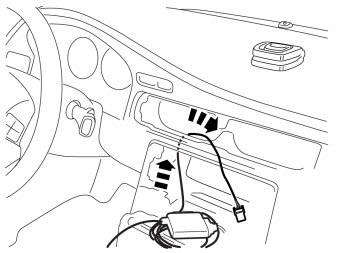

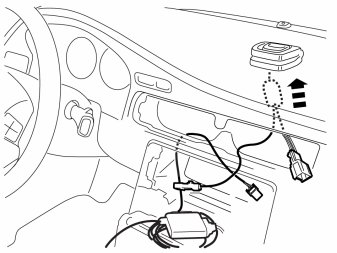

- Take the TMC unit and pull up the long cable through the hole for the ventilation grille.




- Take foam tape from the kit and cut off a suitable length to wrap the ferrite.
- Remove the masking tape.

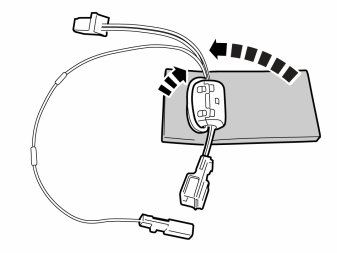

- Take the cable splice with ferrite from the kit and wrap the ferrite with foam tape.




- Take the cable splice and secure the grey connector instead of the previously removed one.

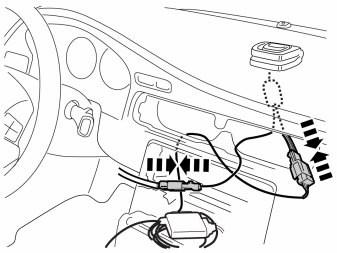

- Connect the connectors on the cable splice from the GPS cradle to the connector from the routed cable on the TMC unit, as well as the three pin green connector to the cable that was disconnected/routed previously.




- Take the cut piece of foam tape and remove the protective tape.




- Wrap up the connected green connectors using foam tape.




- Place the foamed connector on the right-hand side of the center air outlet together with the two cables.
- Secure the cables at the bracket to the center air outlet. Ensure that there is some slack in the cable to the foamed connector.

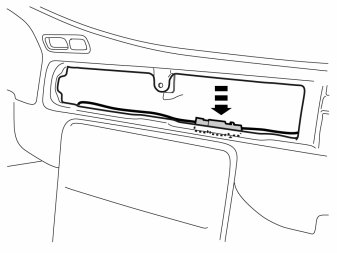

- Take a piece of butyl tape and press the small green connector as well as the cable to the TMC unit at the lower edge of the hole to the center air outlet.




- Connect the antenna cable that was disconnected from the media player to IN on the TMC unit.

- Connect the remaining cable end from the TMC unit to the media player.




- Take the foam tape from the kit and remove the protective tape.

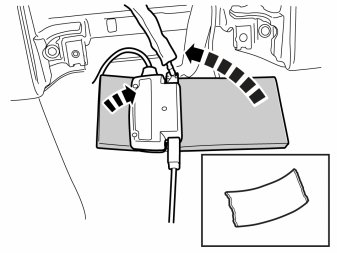

- Wrap foam tape around the TMC unit.

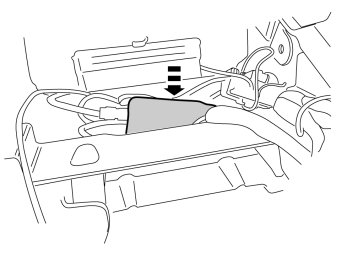

- Place the TMC unit with all the cable excess in the space under the media player.




- Reinstall the media player. Ensure that no cables are trapped.
















































- Ensure that the cables from the GPS holder do not get trapped by the air vents.
- Pull out the cable with contact to the hazard warning light.

















Illustrations A and B




- Connect the connectors to the glove box. Reinstall the glove box.





























- Turn the ignition key to position II.
- Reconnect the battery negative lead.

Applies to cars where Navigation system portable and Navigation system, portable, Installation kit TMC kit are all installed.
Applies to cars without loudspeaker grilles.
First carry out steps 1-31 and 33-53 of the Navigation system portable installation instructions.
Then carry out steps 77-126 of the Navigation system, portable, Installation kit TMC, installation instructions.
