Part 2

Multimedia monitor with DVD (Continued)

Applies to cars with automatic transmission

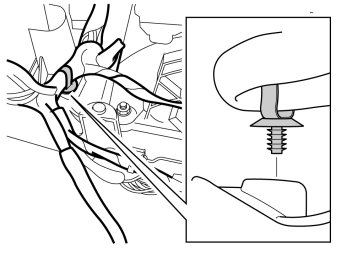

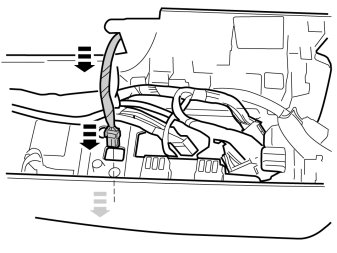

- Disconnect the front mounting of the mechanical cable in the lever carrier by moving the white sleeve backwards and at the same time pulling out the cable from the lever carrier using a hook.

Applies to all models

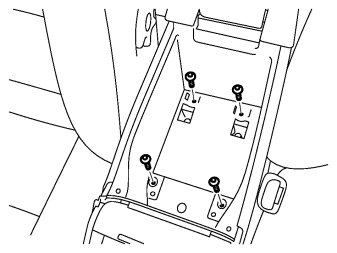

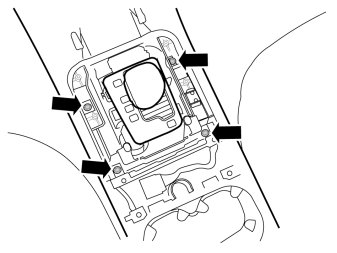

- Remove the four screws.

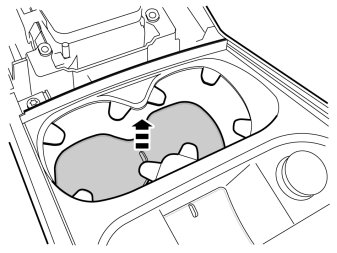

- Remove the mat in the cup holder.
- Remove the M8 screw.

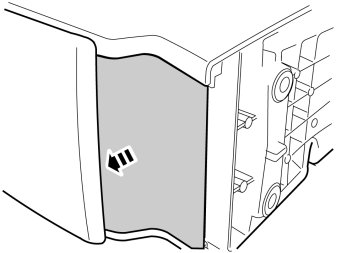

- Remove the rubber mat in the bottom of the storage compartment by pulling it up at the front edge.

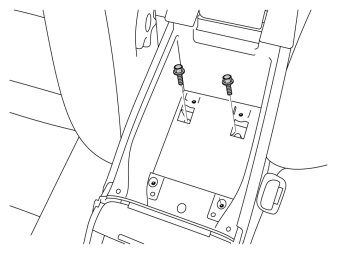

- Remove the two recessed M8 screws at the bottom of the storage compartment.

- Remove the four recessed screws at the bottom of the storage compartment.

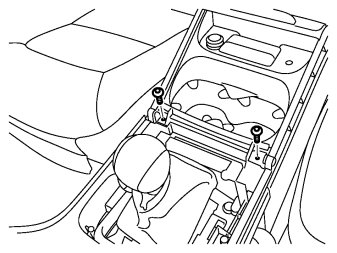

- Remove the two screws.

- Press together the catches and lift the rear tunnel console rearwards slightly.

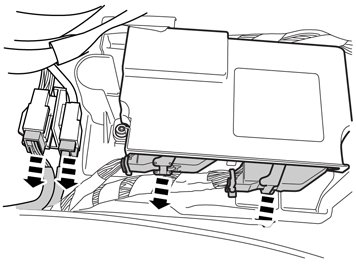

- Disconnect the two grey connectors and the two connectors on the SRS control module.

Illustrations A and B

- Remove the two screws on each side of the center console.

Applies to cars with automatic transmission
- Depress the catches and move the gear lever to D.

Applies to all models
- Remove the lower section of the center console. Detach and unhook any connectors for the antenna for the keyless system (1) and Four-C system (2).

- Unhook and place the air ducts to one side.
- Pull the tunnel console with the lever carrier backwards and remove from the car.

Warning! Do not damage the SRS connectors when removing the tunnel console.

- Place the tunnel console on a suitable surface.
- Remove the cover panel.

- Unhook the connector for any handsets.

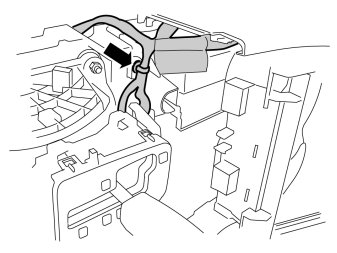

- Cut off the cable tie for the cable harness.

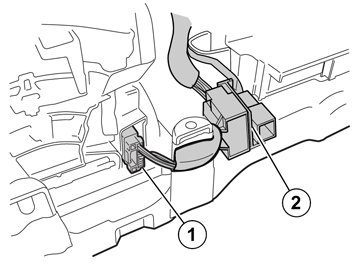

- Disconnect the connector (1) from the lever carrier.
- Unhook the connector (2) from the tunnel console surround.
- Remove the tunnel console surround.
- Remove all cradles for the connectors and cut cable ties from the frame.

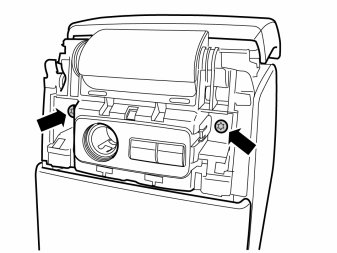

- Remove the two screws.

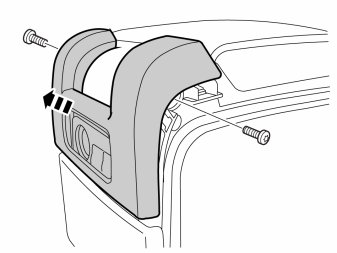

- Remove the two screws and the cover panel.

- Remove the two screws.

- Remove the armrest with its mounting.

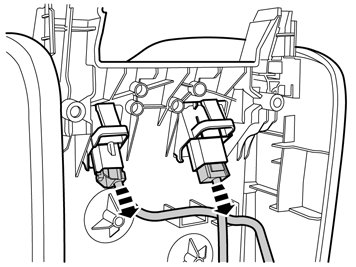

- Disconnect and unhook the connectors.

- Detach the connectors on the underside of the cup holder.

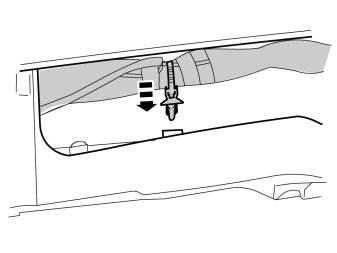

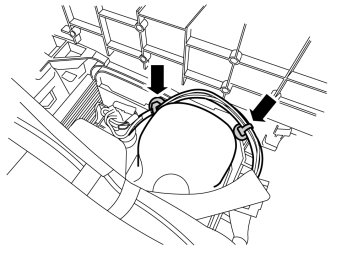

- Cut off the cable ties and remove the clips.

- Remove the front screws at the bottom of the storage compartment.

- Remove the cup holder from the tunnel console by pulling it forwards.

Installing components in the new tunnel console

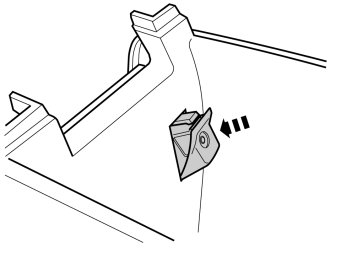

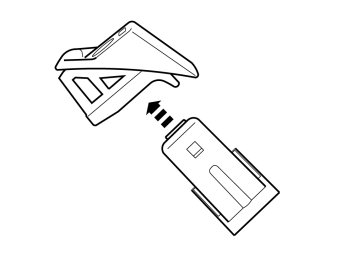

- Take the AUX socket with holder from the kit. Install the socket in the holder.

- Take the new tunnel console from the kit. Install the AUX socket in the tunnel console by first hooking it at the lower edge.

Applies to cars with a USB socket

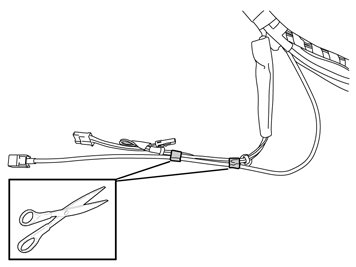

- Take the cable harness from the kit. Cut off the two pieces of tape.

Applies to cars without a USB socket

- Take the cable harness from the kit. Fold the grey cable back and tape the connector to the cable harness.

Applies to cars with a USB socket

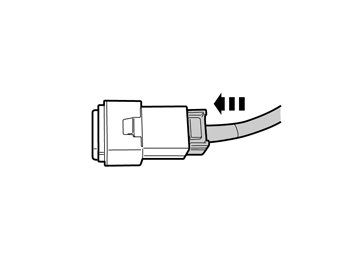

- Connect the USB socket to the cable harness.

- Connect the USB cable to the socket.

- Wrap foam tape around the USB cable and the socket. Tear off the excess.

Applies to all models

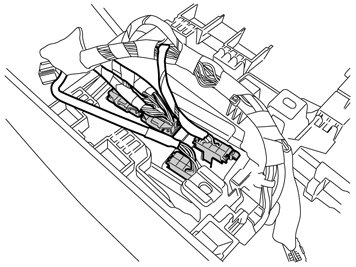

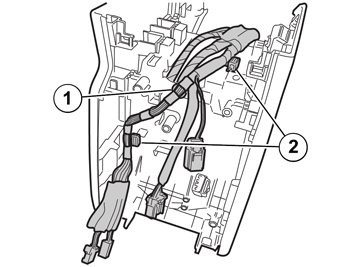

- Secure the cable harness clips in the hole (1) and on the flanges (2).

- Connect the AV socket's adapter cable to the cable harness.

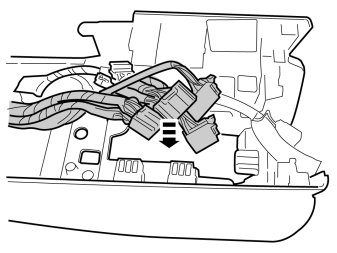

- Insert the four (three without Digital TV receiver) connectors for the DVD player through the hole at the bottom of the tunnel console.

- Insert the green 5-pin connector for the AV socket through the hole in the bottom of the tunnel console.

Applies to cars with a USB socket

- Disconnect the two connectors.

- Press in the two hooks and remove the panel.

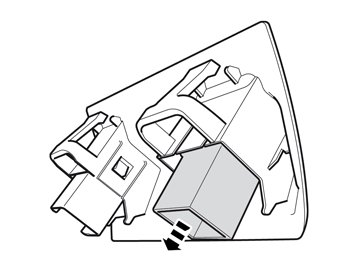

- Remove the USB socket from the panel.

Applies to cars with keyless system

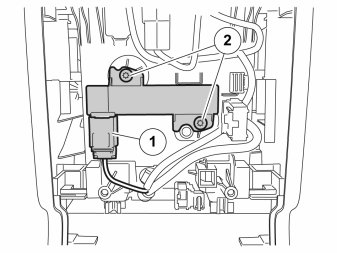

- Unplug the connector (1).
- Remove the two screws (2) and the antenna.
- Install the antenna on the new tunnel console.

Applies to all models

- Connect the connector to the AUX socket (1).
- Tape the connectors that are not used (depends on the specification of the car) to the tunnel console using butyl tape.
- 14 pin headset socket (2)
- 5 pin switch for rear seat heating (3)
- 2 pin 12 V socket (4)
- 4 pin antenna for Keyless system (5).

- Install the cup holder. Check that the two hooks engage on each side.
- Reinstall the front screws at the bottom of the storage compartment.

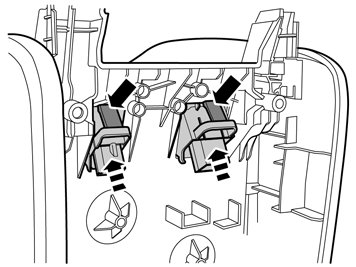

- Connect the connectors and press the two clips in for the cable harness.

- Remove the panel from the tunnel console by carefully releasing the four hooks.
- Install the panel on the new tunnel console.

- Take the DVD holder, AV socket and two screws from the kit. Install the AV socket on the holder.

- Make markings on the top of the DVD player as illustrated. Make marks using a scriber.

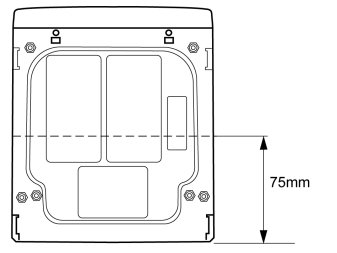

- Make markings underneath the DVD player as illustrated. Make marks using a scriber.

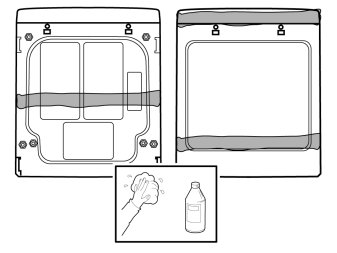

- Clean the areas around the markings using isopropanol.

- Attach the three pieces of foam tape at the lower edge of the markings.

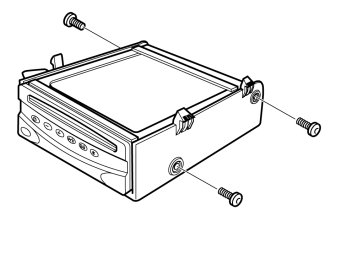

- Place the DVD player in the holder. Tighten the three M4x8 screws from the kit.

Illustrations A and B

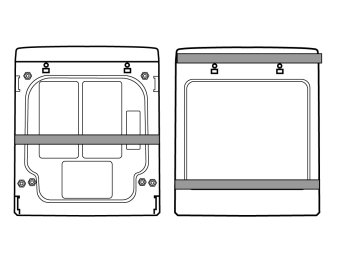

- Attach tape at the front and rear edge of the tunnel console for protection when installing the DVD player.

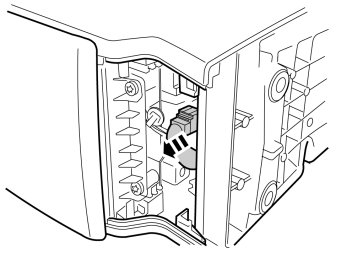

- Connect the connector to the AV socket.

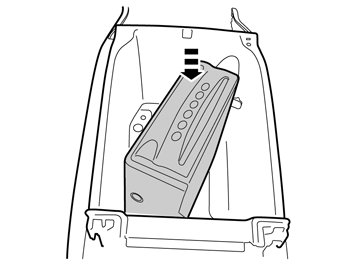

- Insert the DVD player diagonally into the tunnel console.

- Secure the two hooks at the front edge

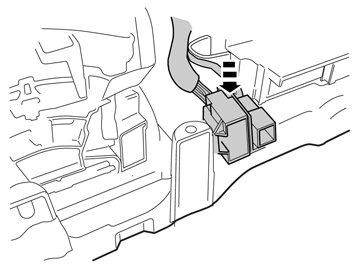

- Connect the four connectors from the tunnel console to the DVD player. (Three without Digital TV receiver.)

Armrest

- Install the armrest with its mounting and two screws. At same time connect the connectors.

- Install the cover panel and the two screws. Check that the hooks at the lower edge engage.

- Take the lever carrier with the tunnel console surround and move it towards the tunnel console.
- Press the connector for any handsets on the surround and connect the cable for the handset.

- Secure the clip of the cable harness to the surround.

- Secure the cradle for the connectors on the frame.

- Secure the clip of the cable harness to the surround.

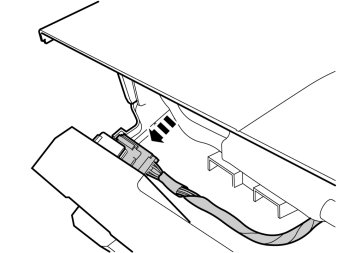

- Connect the connector to the lever carrier.

- Hook the cable harness clips (1) and the connector (2) onto the surround.

- Temporarily reinstall the three screws at the bottom of the storage compartment.
