USB/iPod(R) Music Player, Interface, Cradle

USB/Ipod Music Player, Interface, cradle


















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section.

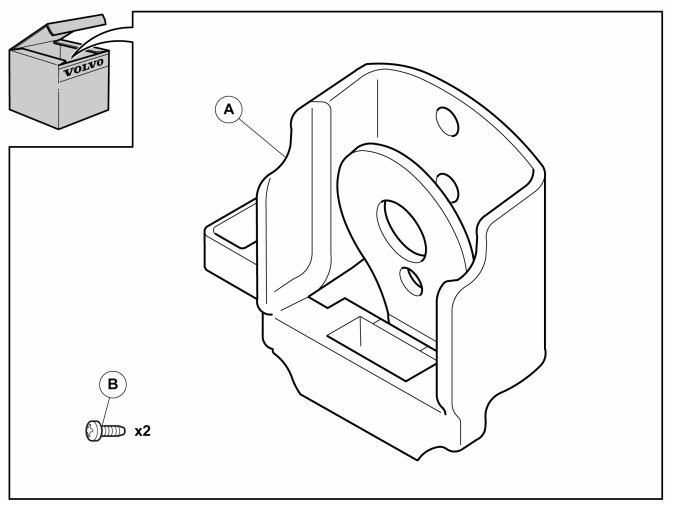

USB/Ipod Music Player, Interface, cradle

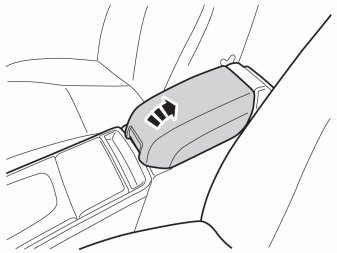

Applies to the S40, V50, C30 and C70








Positioning applies to left-hand drive cars




Applies to left-hand drive cars

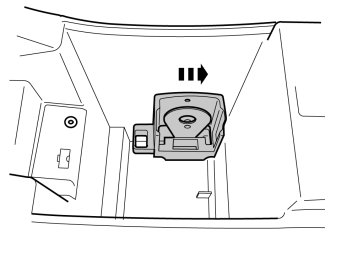

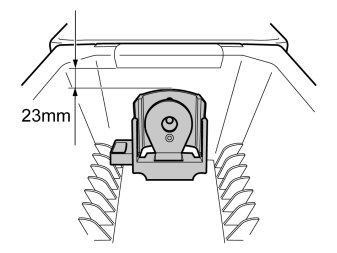

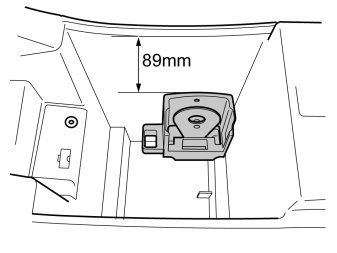

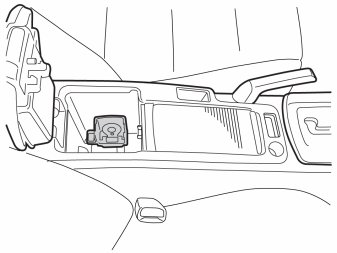

- Position the cradle against the rear end.




Applies to left-hand drive cars




Applies to right-hand drive cars




Applies to right-hand drive cars

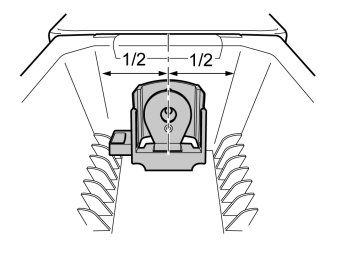

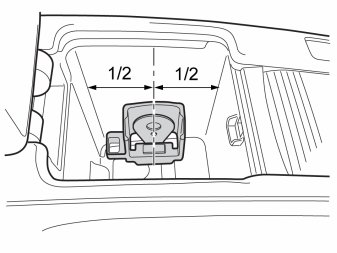

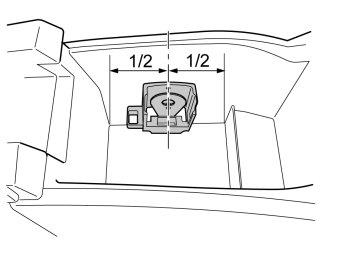

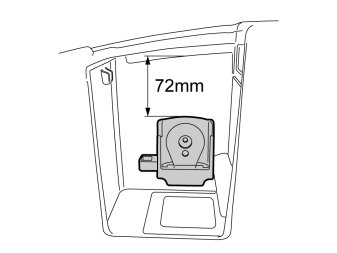

- Position the cradle in the middle of the side face.




Applies to right-hand drive cars




Applies to all models

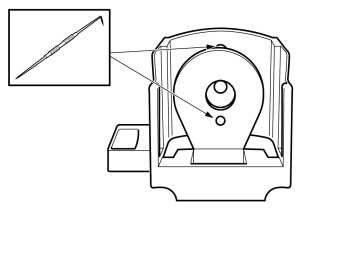

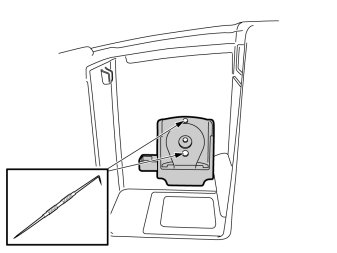

- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

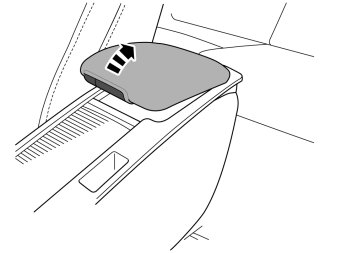

Applies to the XC90

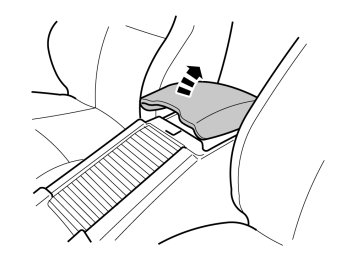

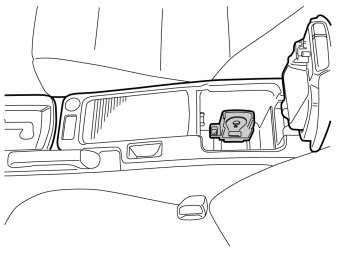

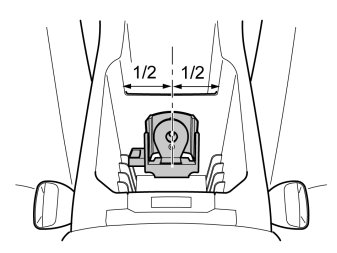

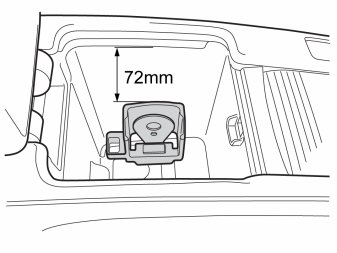

- Position the cradle in the tunnel compartment's front end.








Applies to cars with DVD player (RSE)

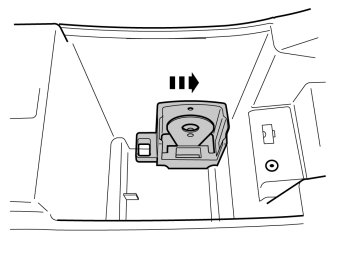

- Position the cradle on the rear end in the tunnel console.




Applies to cars with DVD player (RSE)




Applies to all models
- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

Applies to the V70, XC70 and S80








Applies to left-hand drive cars

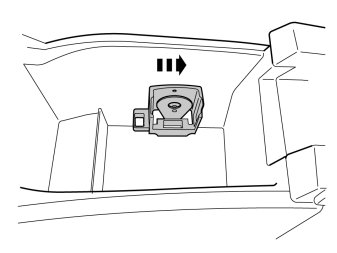

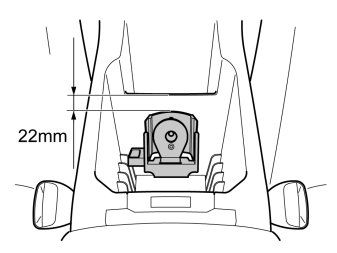

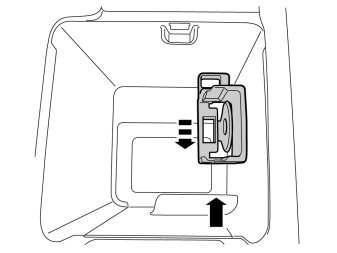

- Position the cradle on the right-hand long side against the rear end.




Applies to left-hand drive cars




Applies to right-hand drive cars and cars with DVD players (RSE)




Applies to right-hand drive cars and cars with DVD players (RSE)




Applies to all models
- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

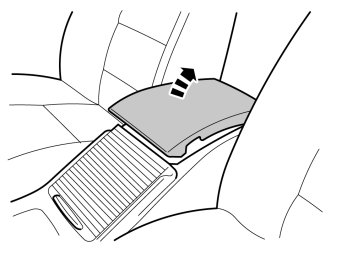

Applies to the XC60








Applies to left-hand drive cars and right-hand drive cars with carphones

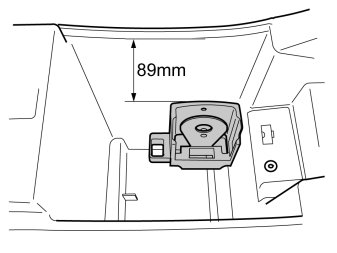

- Position the cradle on the right-hand long side against the rear end.




Applies to left-hand drive cars and right-hand drive cars with carphones




Applies to right-hand drive cars

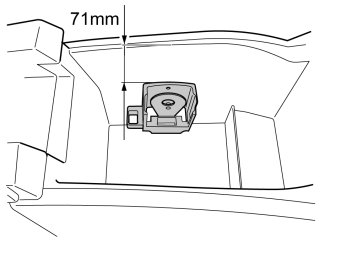

- Position the cradle on the left-hand long side against the front end.




Applies to right-hand drive cars




Applies to all models
- Mark and make holes using a scriber or similar.

Caution! The hole must not be larger than 2 mm.

Applies to all models

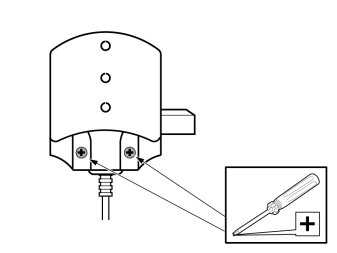

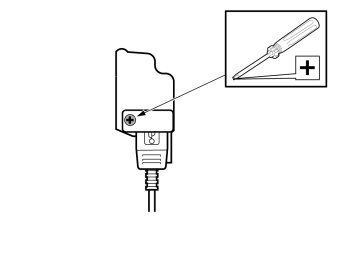

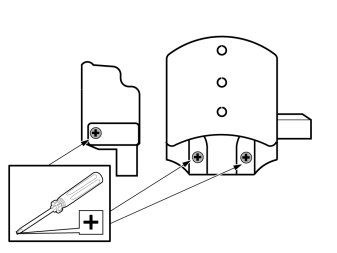

- Slacken off the screws.




- Remove the end section.

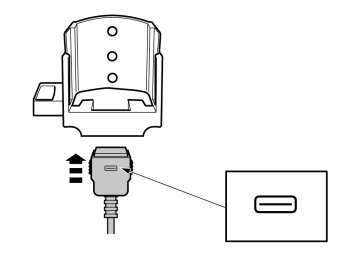

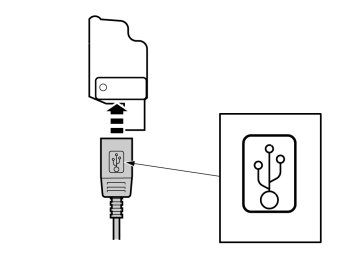

- The marking on the connector must be pointing outwards.

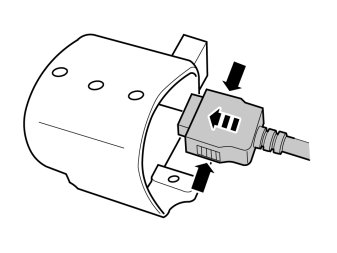

- Press in the catches and connect the connector.

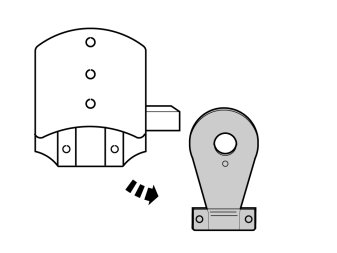

- Install the rear section and the screws.




- Connect the connector with the marking pointing outwards.

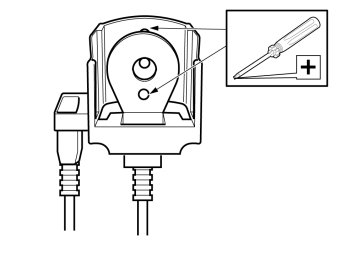

- Install the screw.




- Screw the cradle in the tunnel compartment.
- Try to feed in any excess wiring.
