Forward Looking Camera: Service and Repair

Camera collision warning

Operation number: 37024






Removal

Note! Removal steps in this procedure may contain installation details.

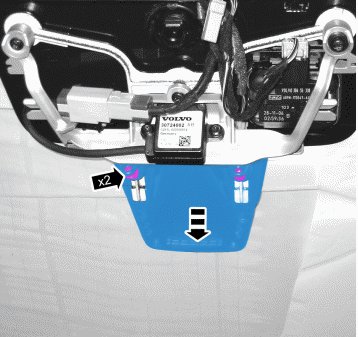

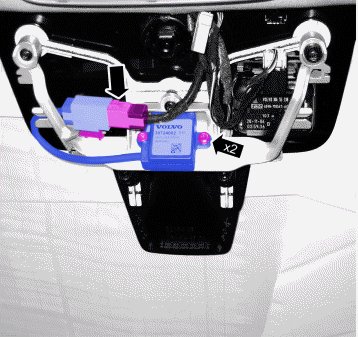

Remove rear-view mirror inside. Refer to: Inner rear view mirror Inner Rear View Mirror








Torque: M5, 5 Nm

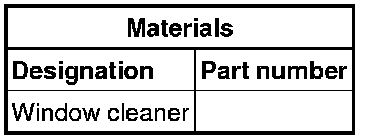

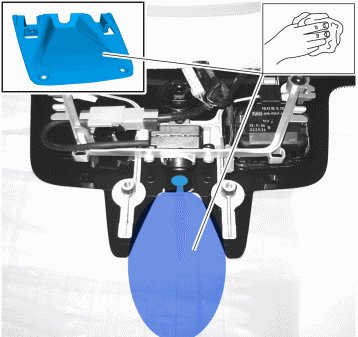

Use: Window cleaner

Installation

To install, reverse the removal procedure.

Calibrate radar and camera.

Order and download appropriate software. Programming and Relearning
