Fault-Tracing

Fault-tracing

Checking the status




- Ignition on
Read the diagnostic status and fault status for the diagnostic trouble code by selecting the diagnostic trouble code in the list.
Check if the malfunction is permanent or intermittent by reading off the diagnostic trouble code's status when the diagnostic status is "Implemented".
If the trouble status is "Malfunction found", this indicates that the malfunction is permanent. If the trouble status is "No malfunction found", this indicates that the malfunction is intermittent and not active right now.

Note! Trouble status cannot go from "Malfunction found" to "No malfunction found" in the same operating cycle.









Continue - Checking components and wiring

-------------------------------------------------

Checking components and wiring




- Ignition off

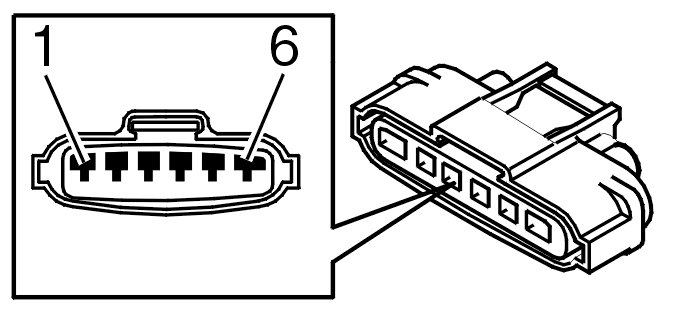

Check engine control module ECM) and the electronic throttle unit's connector for contact resistance and oxidation.
Remedy as necessary.

Other information
- Connecting the breakout box, B6304T2 Connecting the Breakout Box
- Signal specification, B6304T2 Signal Description, Engine Control Module (ECM)
- Throttle body, B6304T2, TF-80SC AWD Removal and Replacement
- Checking wiring and terminals Checking Wiring and Terminals









Continue - Verification

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking components and wiring

-------------------------------------------------

Verification




Verification

Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on
Activate throttle position read off.
Check that the throttle angle and both sensor values correspond.





Are the values within their permitted range?

Yes - Troubleshooting procedure complete

No - Fault-tracing information

-------------------------------------------------
