Fault-Tracing

Fault-tracing

Checking the connectors and hose connector
Check the hose connectors on the intake manifold for damage and leakage.

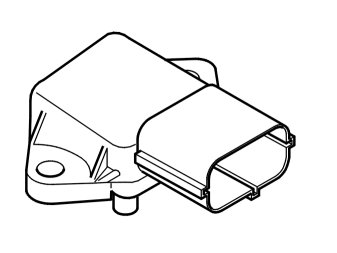

Check the connector and terminals on the pressure sensor. Check for contact resistance. Check for oxidation.
Remedy as necessary.

Other information
- Temperature and manifold absolute pressure sensor (MAPT), B6304T2 Service and Repair
- Checking wiring and terminals Checking Wiring and Terminals









Continue - Verification

-------------------------------------------------

Verification




Hint: After carrying out the repair, check that the fault has been remedied.








- Ignition off
- Reinstall the connectors, components etc.
- Ignition on
Read off the pressure sensor signal for intake pressure and the atmospheric pressure sensor signal by clicking on the VCT2000 symbol.
Check that the values correspond. The atmospheric pressure sensor signal is used as a reference value in this check.





Is the value within its permitted range?

Yes - Troubleshooting procedure complete

No - Fault-tracing information

-------------------------------------------------

Fault-tracing information




Information

Fault-tracing information
The fault should have been detected and remedied. As this is not the case fault-tracing has failed.
Exit fault-tracing for this diagnostic trouble code (DTC) or make another attempt.

Do you want to exit fault-tracing?

Yes - Exit fault-tracing

No - Attempt New Test

------------------------

Attempt New Test - Checking the connectors and hose connector

-------------------------------------------------
