Diagnostic Trouble Code (DTC) Information

Diagnostic trouble code (DTC) information CEM-B110F96

Condition

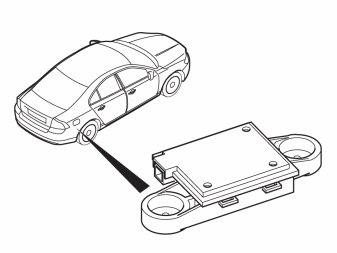

Central electronic module (CEM) checks the function of heartbeat sensor via control messages. At activation, the heartbeat sensor check its own internal function with a test.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- Central electronic module (CEM) receives an error message from the heartbeat sensor that the internal control has failed.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Activation of the sensor.

Note! The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.





Substitute value
- None.

Possible source
- Internal error in heartbeat sensor.

Fault symptom[s]
- No alarm from sensor
- Message in information display
