Mudflaps, Rear

Mudflaps, rear





























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces

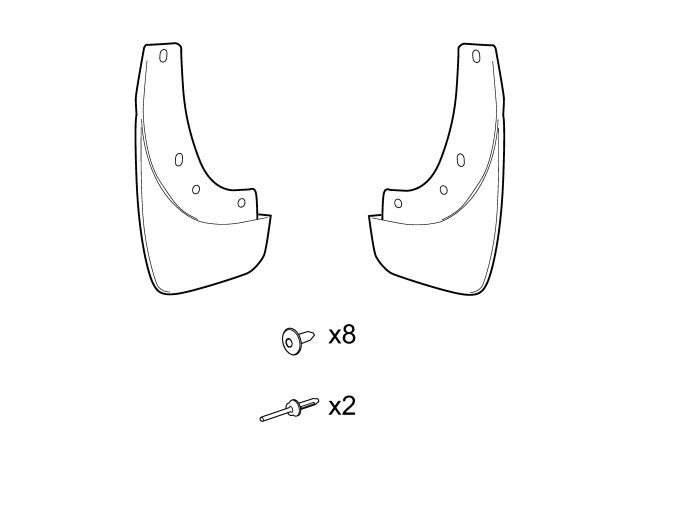

- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






Mudflaps, rear

Note! Points 1-6 are carried out on both sides.




- Remove the rear wheel.

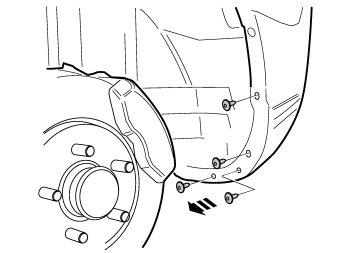

- Remove the four screws.





Install:
- the mudflap
- the four new screws from the kit, and tighten.




- Drill a -5 mm (3/16") hole for the pop rivet.




- Install the pop rivet.




- Reinstall the rear wheel, tightening torque 90 Nm (66 lbf.ft).
