Mudflaps, Front

Mudflaps, front





























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The front page gives the date of this edition and the edition it replaces

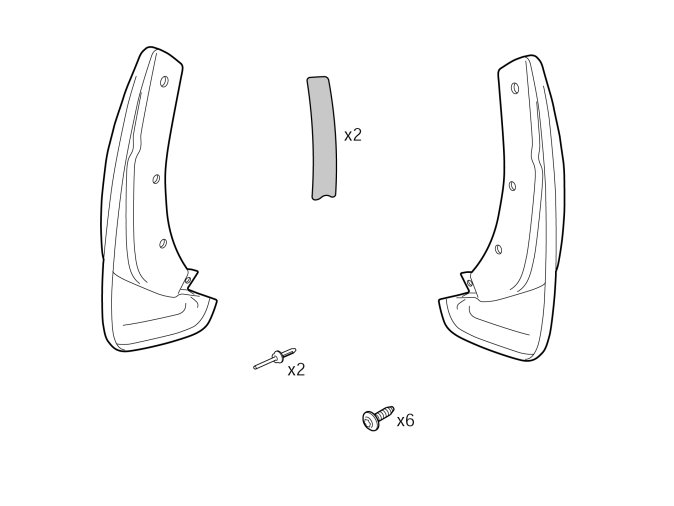

- The second page shows the tools needed for the installation and the contents of the installation kit
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section
- Cut out the text page in order to follow the illustrations and text at the same time.






Mudflaps, front




- Remove the front wheels.

Illustration A




- Remove the three screws at the rear edge of the wheel arch.

Illustration B





Applies to cars with painted door sill panels
- Remove the three screws at the rear edge of the wheel arch.
- Remove the stone-chip protection. It shall not be re-used.




- Clean as illustrated.




- Remove the backing paper from the tape (A).




- Position as illustrated.





Install:
- the mudflap
- the new screws.
- Tighten the screws.




- Drill a new 5 mm (3/16) hole at the marking.




- Secure the pop rivet.




- Install the front wheel.
- Tighten to the correct torque.
