Bevel Gear

Bevel gear

Operation number: 43330-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove exhaust manifold right Refer to: Exhaust manifold, right-hand, B8444S Exhaust Manifold, Right-Hand

Loosen front propeller shaft joint Refer to: Propeller shaft, B8444S, TF-80SC AWD Propeller Shaft

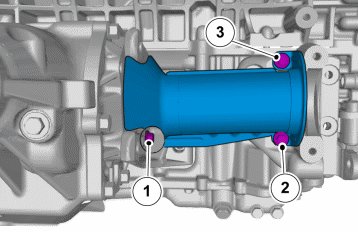

Torque: M6, 10 Nm

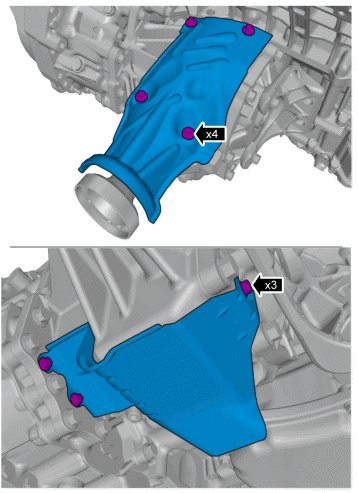

Torque: M10, 50 Nm

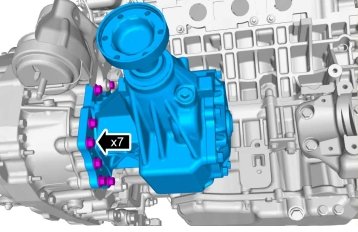

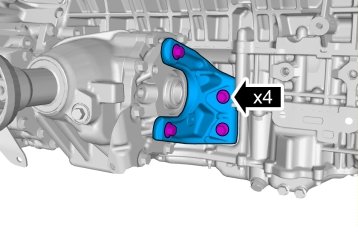

Torque: M10, 50 Nm

Installation

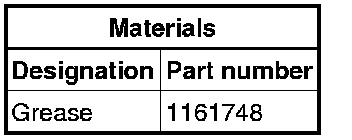

Use: Splines grease, 1161748

To install, reverse the removal procedure.
