Rear Door Window Regulator: Service and Repair

Lift mechanism, rear door

Operation number: 83528-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Removal

Note! Removal steps in this procedure may contain installation details.





Remove the following items:
- the panel. Refer to: Panel rear door Panel Rear Door
- the handle. Refer to: Outer handle, rear door Service and Repair.





Note! Do not loosen the bolts more than 2 turns.

Torque: Window to power window mechanism (rear side door), 8 Nm

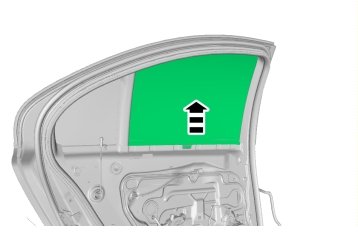

Note! Secure the window at the upper door arch using adhesive tape.

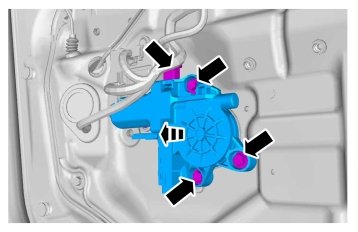

Torque: M6, 10 Nm

Torque: Door latch to door, 8 Nm
















Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure.

Initiate the window regulator. See VIDA vehicle communication, Initiating window position.
