Manual Transmission

Driveshaft left

Operation number: 46630-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel. Service and Repair

Loosen the wheel spindle from the link arm. Refer to: Front control arm Service and Repair




Torque: Driveshaft to wheel hub (front) Stage 1: 35 Nm Stage 2: 90 degree

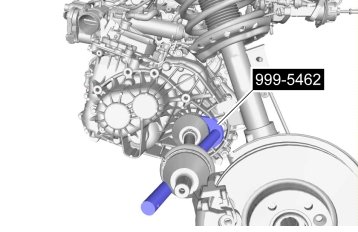

999 5462 Jimmy tool 999 5462 Jimmy Tool.

Note! Caution! Do not damage the drive shaft seal when removing the drive shaft from the gearbox.

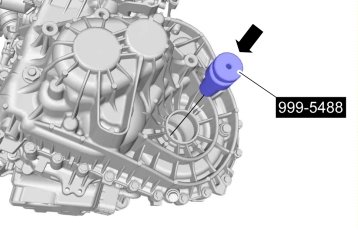

999 5488 PLUGS 999 5488 Plugs

Installation

To install, reverse the removal procedure
