Steering - P/S Sys Layout, Numbering Of Connection Points

Technical Journal

TITLE:

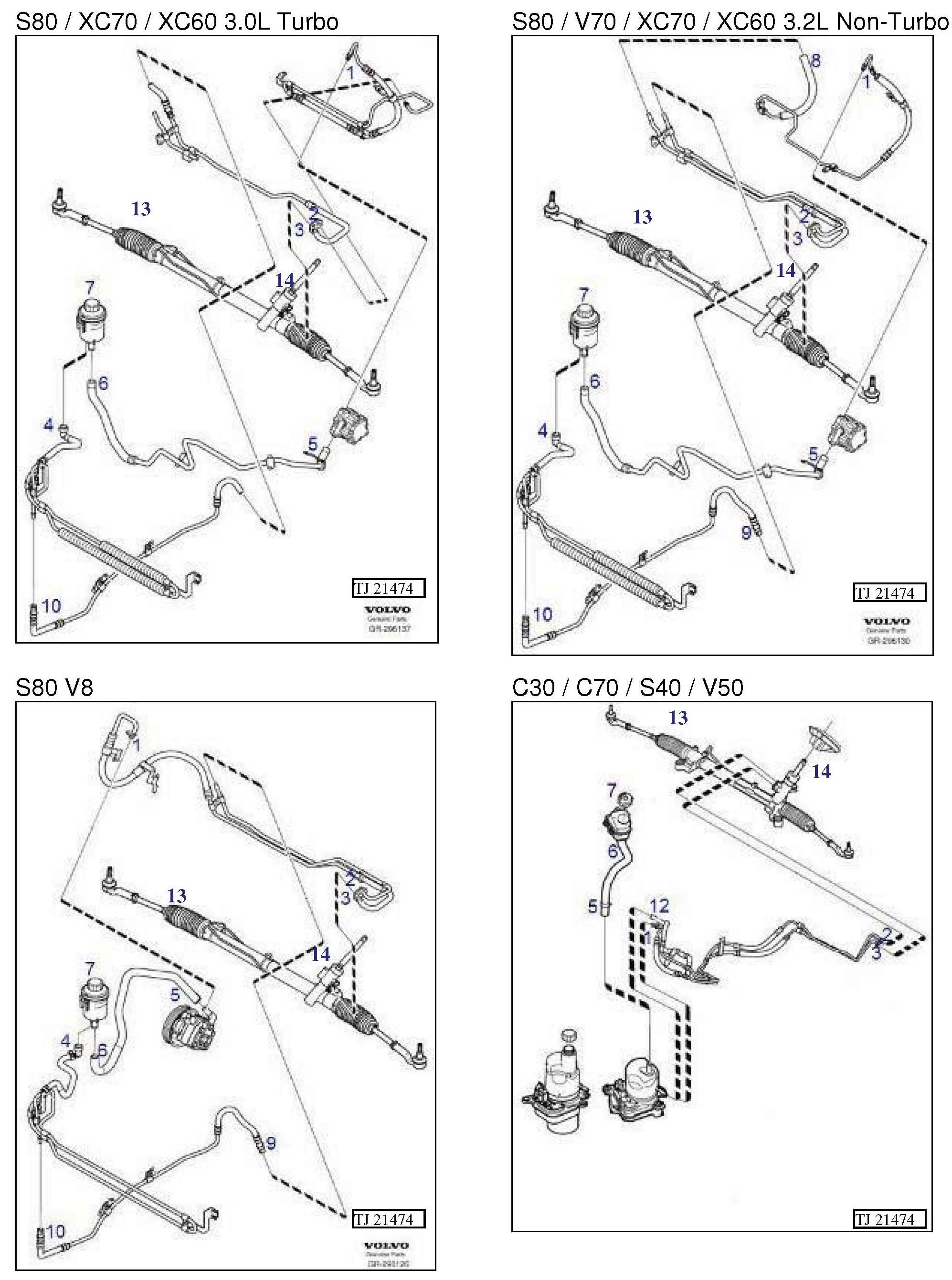

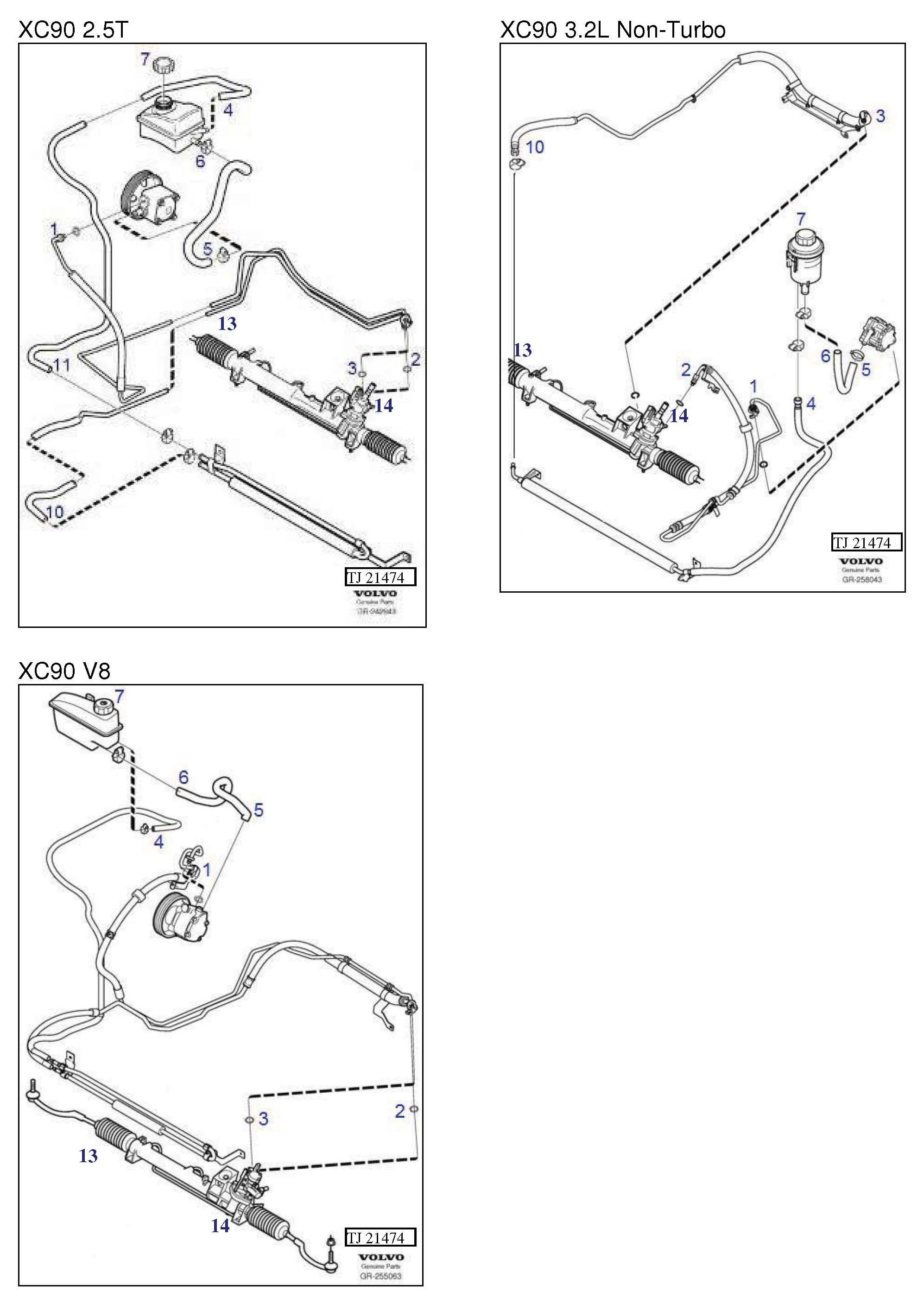

Power steering system layout, numbering of
connection points

CAR MARKET:
United States and Canada

ISSUING DEPARTMENT:
Technical Service

REF NO:
TJ 21474

ISSUE DATE:

YEAR
2013

MONTH
01

DAY
09

PARTNER:
3 US 7510 Volvo Cars North America

FUNC DESC:
Steering

FUNC GROUP:
6400

"Fixed Right - First Time"

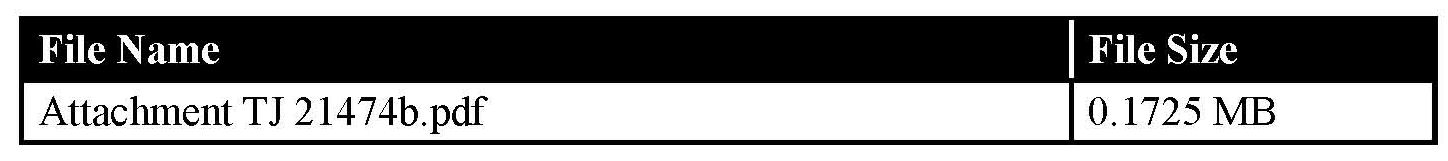

Attachment

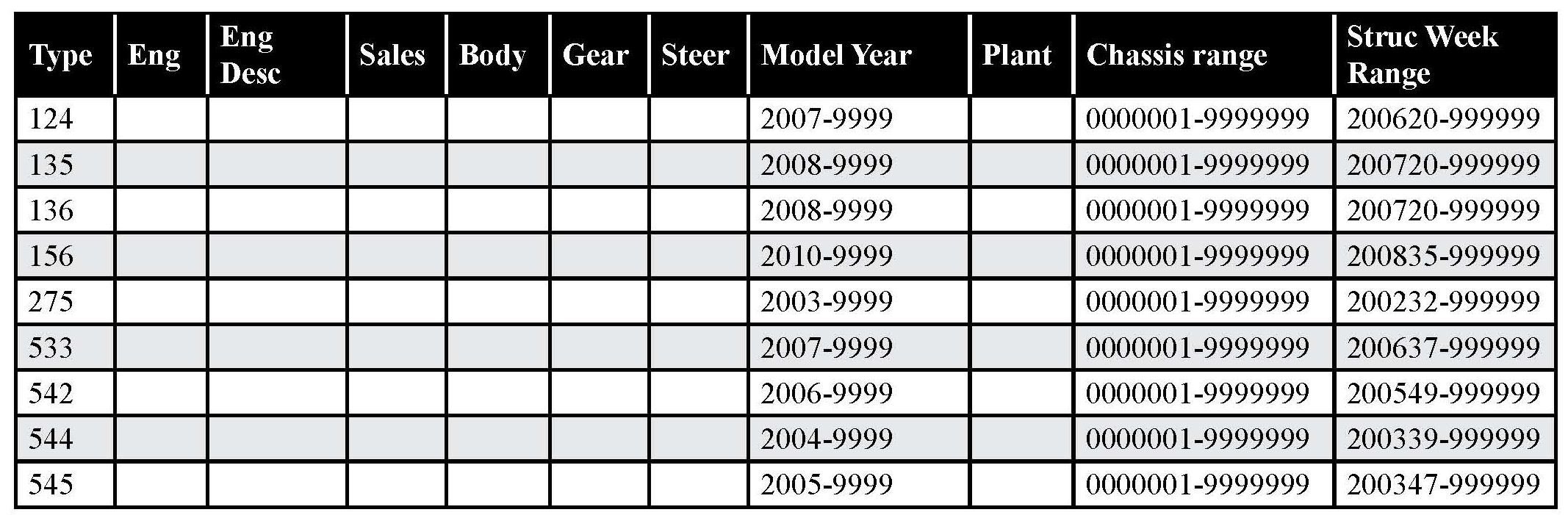

Vehicle Type

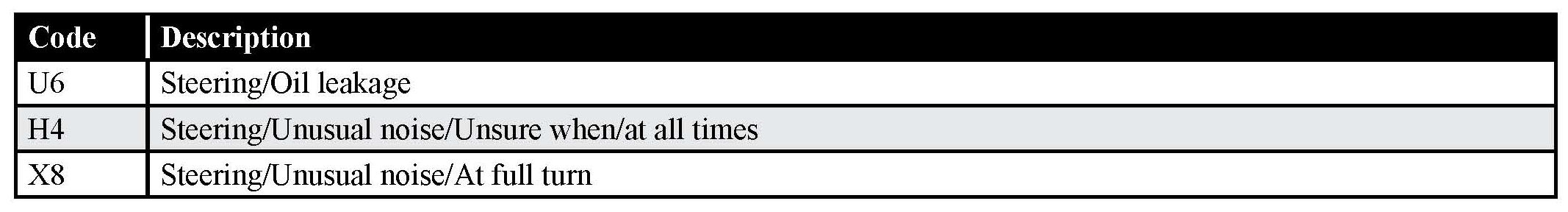

CSC Customer Symptom Codes

DTC Diagnostic Trouble Codes

Text

DESCRIPTION:
The purpose if this TJ is to have a common layout for the terminology used concerning power steering connection points. This will help with the communication of any leakage and must be used by technicians and service advisors when creating the repair order text for warranty claims.














SERVICE:

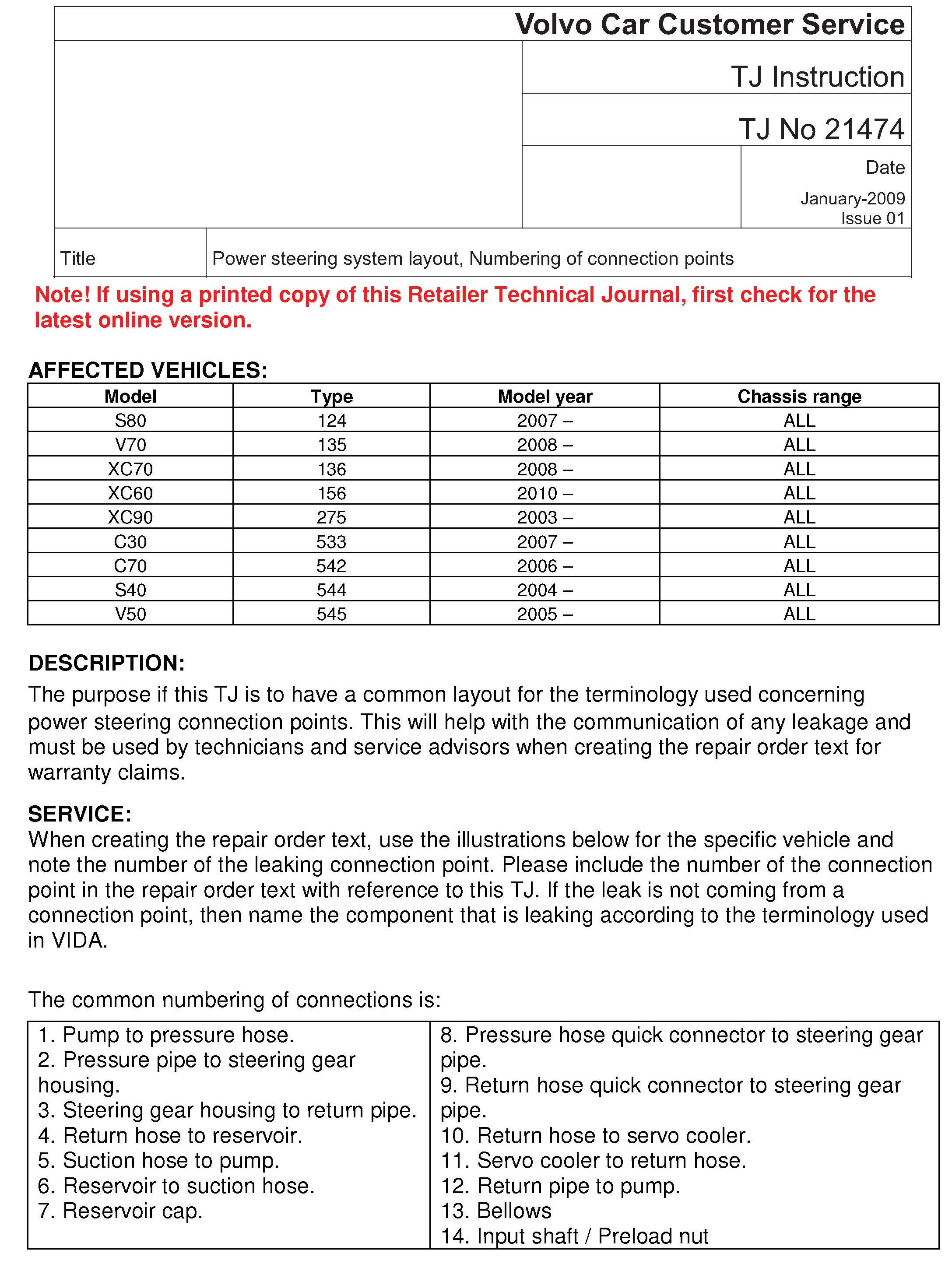

See attached...

To view TJ attachment
