EZ Pass(R) - Toll Transponder May Not Be Recognized
Title Toll Transponder Not recognized Through The IR WindscreenRef No US24751.1.0 en-GB
Issuer -
Partner 3 US 7510 Volvo Cars North America
Func Group 8431 Func Desc windscreen
Status Released
Status Date 2011-06-07
Issue Date 2011-05-13
Reference VIDA
Attachment

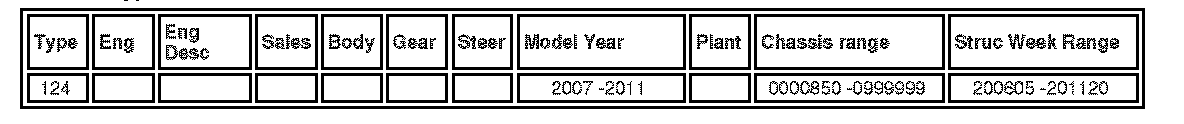

Vehicle Type
CSC
DTC
Text
CSC = Customer Symptom Code
DTC = Diagnostic Trouble Code
Note!
If using a printed copy of this Retailer Technical Journal, first check for the latest online version.
DESCRIPTION: EZ pass toll transponder may not be recognized through the IR windscreen.
Concerned vehicle: S80 with Executive package (option) only.
PRODUCT MODIFICATION: IR windscreen will not be available from production as an option from week 2011W20
SERVICE: If customer chooses not to use the available front license plate mount EZ pass or if vehicle is not equipped with a front license plate replace IR windscreen to windscreen without IR glass.

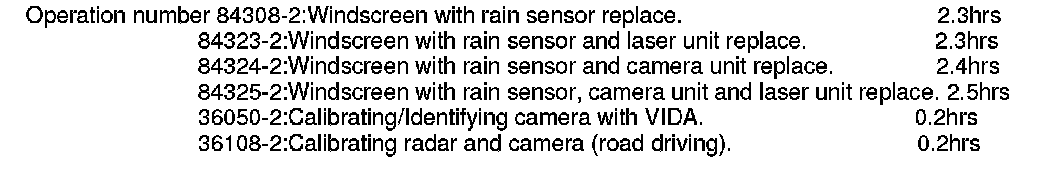

Operation Number
- Claims may be submitted under the new car warranty when there is a documented customer complaint using claim type: 01
