Power Steering Delivery Pipe

Power steering delivery pipe

Operation number: 64532-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.






Removal

Note! Removal steps in this procedure may contain installation details.

Remove battery. Removal and Replacement




Torque: M8, 24 Nm

Remove the air filter housing. Service and Repair





Warning! Be prepared to collect escaping fluids.

- Torque: Pressure line to power steering pump, 30 Nm

- Torque: M6, 10 Nm

Remove the right front wheel. Service and Repair









Warning! Be prepared to collect escaping fluids.

Caution! Make sure that all openings are sealed.

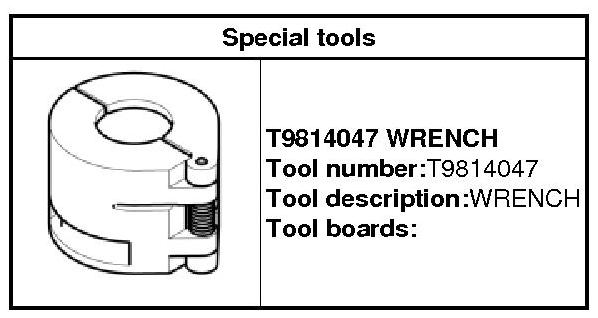

981 4047 Wrench 981 4047 Wrench




Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure




Ensure that the delivery line's heat protection hose is routed over the entire protective pipe.

Bleed the power steering system. Service and Repair
