Child Safety Seat Release Cable

Child Safety Seat Release Cable

NOTE: As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Removal

Removing the cable.

Remove the booster cushion. See Child safety seat.

Remove:

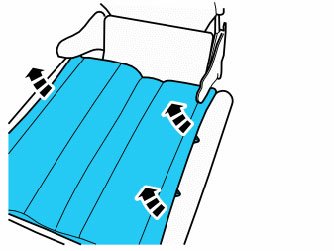

- the 8 clips
- the cushion upholstery

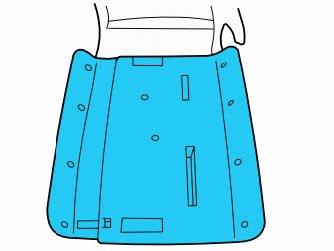

- the plastic panel.







Detach the upholstery from the plastic panel.

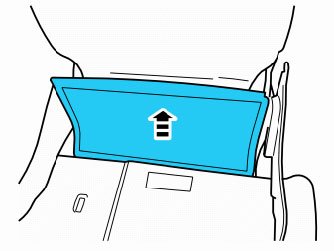

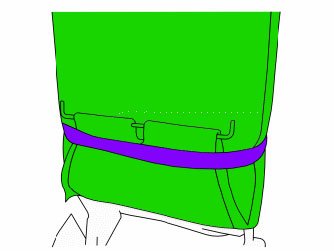

Hint: Tape up the upholstery to the backrest.

NOTE: Press the seat halves together.

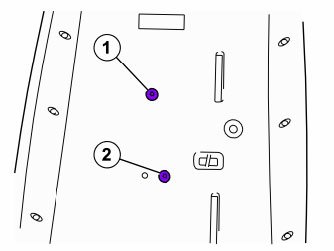

Lock the seat halves using a self-tapping screw (1).
Remove the screw (2).

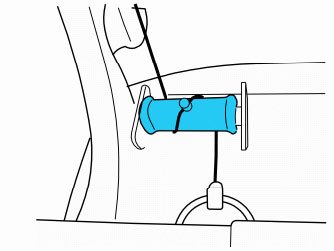

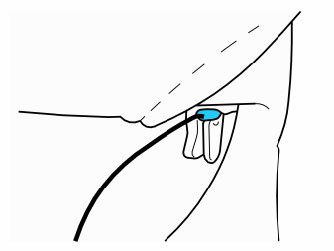

Carefully pry apart the mounting for the wire reel.

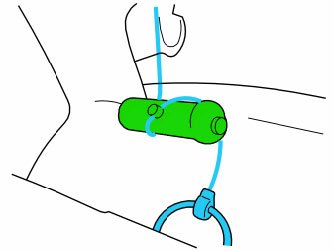

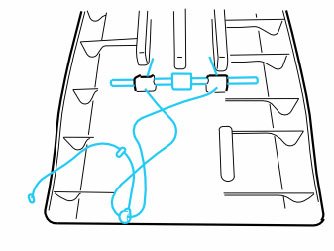

NOTE: Note the routing of the wire on the wire reel.







Remove:
- the wire reel







- the wire from the back rest.







- the cushion.

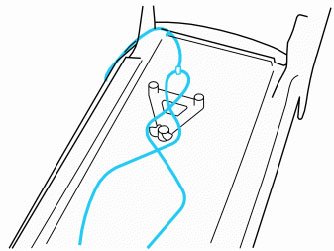

NOTE: Note the marking of the spring.

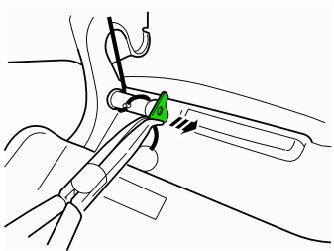

Remove the spring and cable.

Installation

Installing the mechanical cable







Install the spring and a new wire.







Position the seat above the frame.

Install the screw (2) and tighten.

Remove the self-tapping screw (1) and at the same time lightly pull the wire so that the spring is correctly located.

Install:







- the wire on the reel according to the earlier note.
- the wire for the mounting in the backrest
- the reel in the mounting.

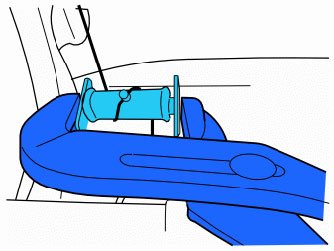

Clamp together the mounting for the wire reel.

Check the function.

Install:

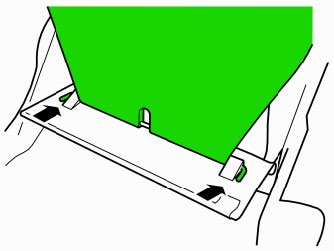

- the backrest upholstery against the plastic panel
- the plastic panel against the seat
- the seat cushion upholstery
- the booster cushion. See Child safety seat.
