Cabin Air Filter / Purifier: Locations

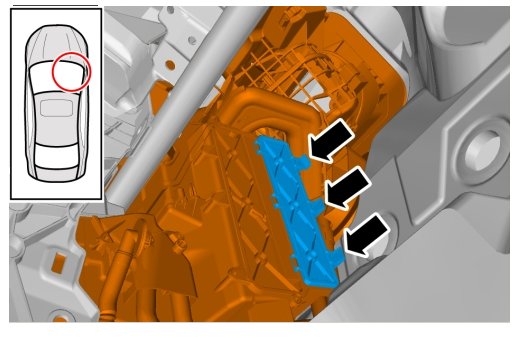

Cabin Air Filter Location







Located underneath the passenger-side dash, inside of the Climate Control Unit.

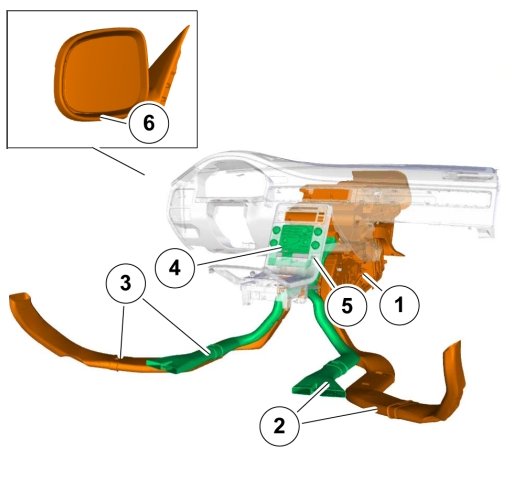

1. Climate Control Unit

2. Air Distribution, Right-hand Side

3. Air Distribution, Left-hand Side

4. Climate Control Module (CCM), Climate Control System

5. In-vehicle Temperature Sensor

6. Outdoor Temperature Sensor, Left-hand Side

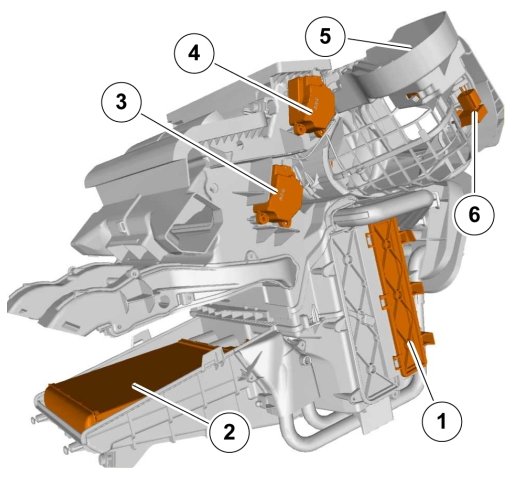

1. Cabin Air Filter

2. Heat Exchanger

3. Damper Motor Module (DMM), Air Distribution Right-hand Side

4. Damper Motor Module (DMM), Defroster

5. Damper Motor Module (DMM), Recirculation

6. Air Quality Sensor (AQS)
