Seat Cover: Service and Repair

Padded Upholstery, Integrated Child Seat, Centre Seat

INTRODUCTION

- NOTE: Read through the whole installation instruction before starting the work.

- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section

Padded upholstery, integrated child seat, centre seat

NOTE: The foam pads must be removed for washing.

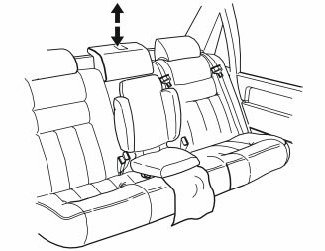

- Pull up the centre head restraint.

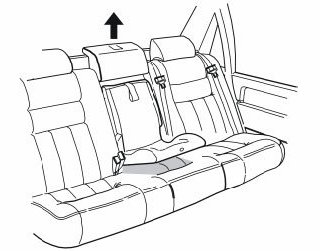

- Fold the child seat forward halfway and undo the catch.

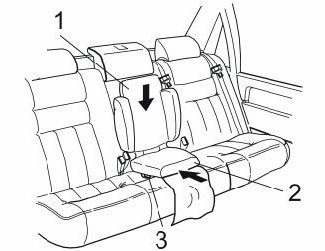

- First thread the padded upholstery over the backrest (1) and then over the seat cushion (2).
- Pull the elastic strap (3) down over the seat cushion.
- Fold up the child seat fully.







- Adjust the head restraint so that it provides optimum protection for the child's head.
