Bag Holder, Cargo Compartment, Parcel Shelf

Bag holder, cargo compartment, parcel shelf

















INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Bag holder, cargo compartment, parcel shelf

Applies to S40 (04-)

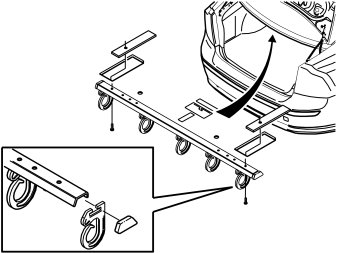

Illustration A

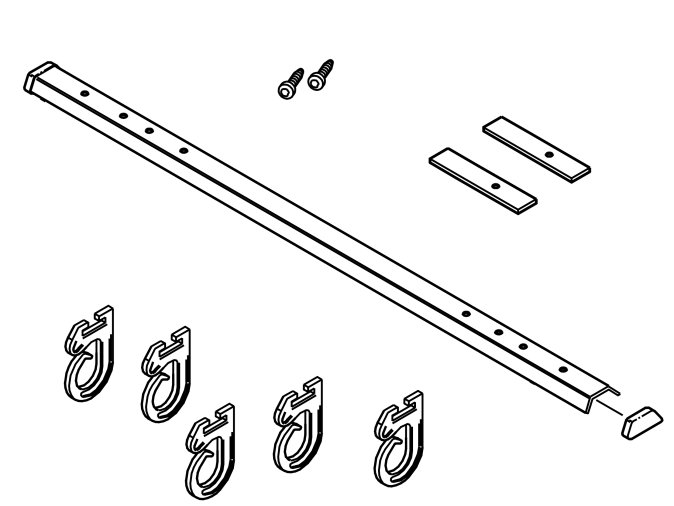

- Take the rail, the hooks and the end stop from the kit
- Thread the hooks onto the rail. Insert the end stop
- Take the two mounting plates and the screws from the kit
- Mount the plates in the outer holes of the rails. Use the screws. The long section of the mounting plate must point forwards
- Lift the rail. Insert the mounting plates in the two large rectangular holes on the underside of the parcel shelf.

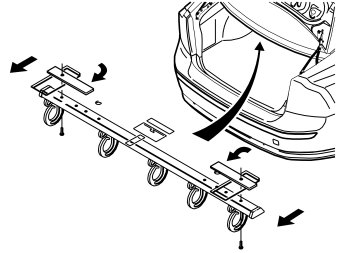

Illustration B




- Turn the mounting plates 90°, so that the long section points inwards in the car and is over the edge of the holes in the parcel shelf
- Slide the rail to the rear edge of the rectangular holes. Check that no wiring is trapped on the upper side of the parcel shelf. Tighten the rail to the parcel shelf.

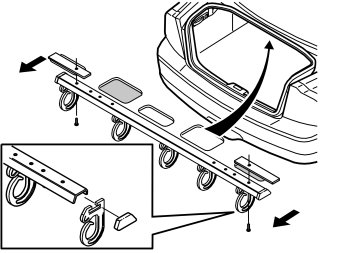

Applies to the S60




- Take the rail, the hooks and the end stop from the kit
- Thread the hooks onto the rail. Insert the end stop
- Take the two mounting plates and the screws from the kit
- Mount the plates in the outer holes of the rails. Use the screws. The long section of the mounting plate must point outwards
- Lift the rail. Insert the mounting plates in the two outer holes on the underside of the parcel shelf
- Centre the mounting plates over the holes. Pull the rail backwards to the rear edge of the holes. Secure the rail using the two screws.

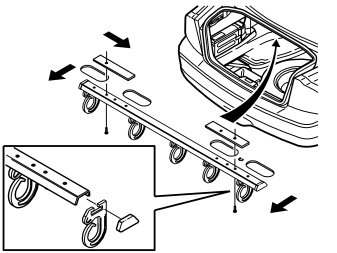

Applies to the S80 (-06)




- Take the rail, the hooks and the end stop from the kit
- Thread the hooks onto the rail. Insert the end stop
- Take the two mounting plates and the screws from the kit
- Mount the plates in the rail's penultimate holes. Use the screws. The long section of the mounting plate must point inwards.
- Lift the rail. Slide the left-hand mounting plate into the left-hand hole on the underside of the parcel shelf. Then slide the right-hand mounting plate into the hole second from the right
- Slide the rail as far to the right as possible so that the mounting plates are over the panel surfaces between the holes. Pull the rail backwards to the rear edge of the holes. Secure the rail using the two screws.

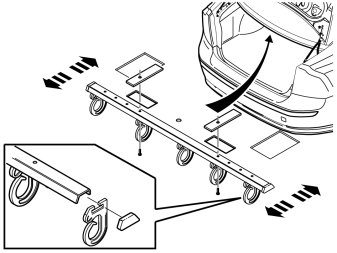

Applies to the S80 (07-)




- Take the rail, the hooks and the end stop from the kit
- Thread the hooks onto the rail. Insert the end stop
- Take the two mounting plates and the screws from the kit
- Mount the plates in the rail's inner holes. Use the screws. The long section of the mounting plate must point forwards in the car.
- Lift up the rail and insert both mounting plates in the holes in the parcel shelf until the screws engage.
- Now turn the plates so that they can be inserted into the holes.
- Pull the rail backwards towards the rear edge of the holes, until the screws engage.
The rear section of the plates may require lifting to go over insulation on top of the parcel shelf.
- Tighten using the two screws.

Removal




Carrier bags can be removed in two ways:
- by carefully moving the hooks to one side
- by lifting the handles for the carrier bags backwards, upwards and then forwards.
