Trim Panel Centre Stack

Trim panel centre stack





























INTRODUCTION
- NOTE! Read through the whole installation instruction before starting the work.
- The illustrations display the procedure in order of operation. The order of operation is repeated in the text section






Trim panel centre stack

Installing the right-hand trim panel

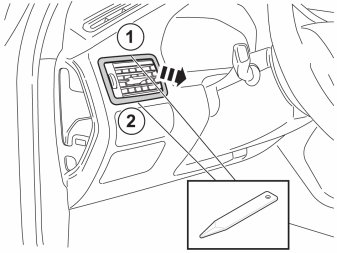

- Prize away the holder for the switch at the lower edge.
- Then prize at the upper edge while coaxing and pulling it out.

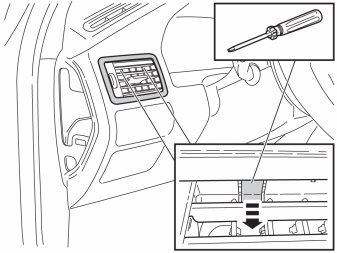

- Locate the holes. Pull the panel with air vents straight out.




- Use special tool P/N 9512943.




- Transfer the air vents and screws over to the new trim panel.

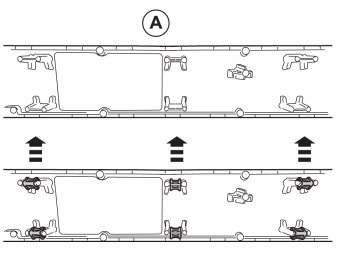

- Transfer the clips over to the new trim panel.




- Thread the connector through the trim panel.




- Press in the trim panel.

Install:
- the screws
- the end face panel
- the switch with holder.

Installing the left-hand trim panel
















- Firmly hold the air vent from inside when installing the new trim panel.

Installing the gear lever panel.

Applies to cars with manual gearbox




- Press in the front edge of the panel to increase the space at the rear edge.




- Using a weatherstrip tool, prize so that the catches loosen from the gaiter and press the gaiter's inner frame at the same time. Remove the panel.




- Take the new gear lever panel, make sure that the four catches fasten on the gaiter's inner frame.




- Install the gear lever panel.

Applies to cars with automatic gearbox




- Move the gear selector to position D.




- Press in the front edge of the panel to increase the space at the rear edge. Remove the panel.




- Install the new gear selector panel.
